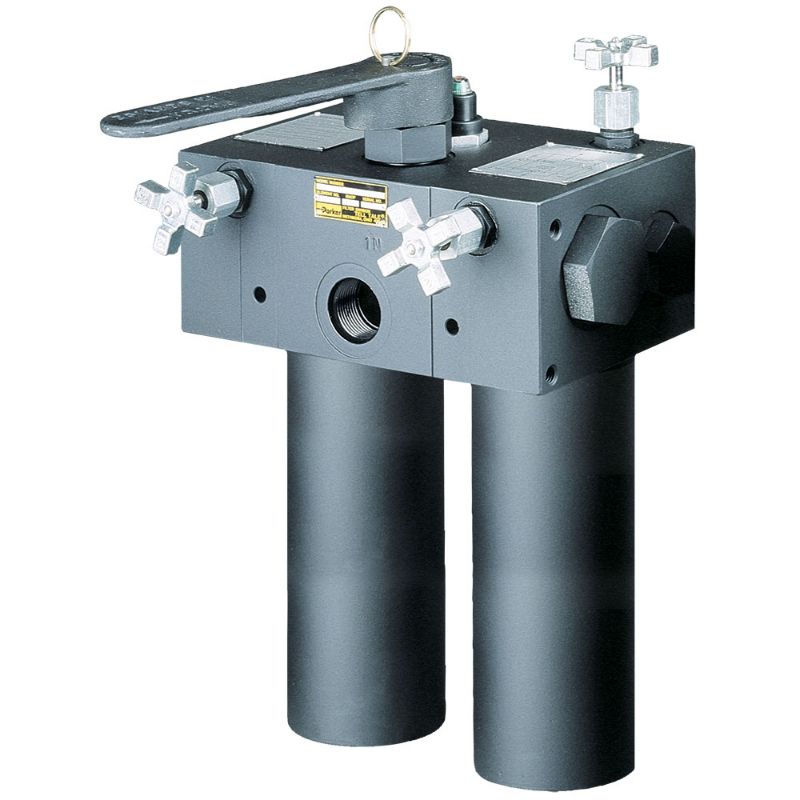

Parker 30PD220QBM2KS162 - High Pressure Inline/Duplex Filter 15P/30P/30PD Series

The Parker 15P/30P Series is a high pressure all aluminum filter assembly that comes in a variety of options. The 15P/30P Series has a rated fatigue pressure of up to 2,000psi and flow rate up to 45gpm.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 30PD220QBM2KS162

$3,341.56/each

Products specifications

Attribute name	Attribute value
UOM	EA	Filter Element Type	cartridge
Pressure Rating	3000 psi	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258
Options	no bypass	Indicator Type	visual automatic reset
Maximum Operating Temperature	107.0 °C	Indicator Pressure Setting	50 psi
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Product Type	Hydraulic Filter
Housing Material	bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6	Product Style	Hydraulic Filter
Bypass Valve Pressure Rating	50.0 psid	Micron Rating	20Q Microglass
Weight	40 lb (18.1 kg)	Compatible Element	933136Q
Seal Material	nitrile	Port Type	SAE-16 ports
Flow Rate	95.0 L/min	Seal Material	Nitrile
Micron Rating	20Q Microglass	Options	No bypass
Indicator Type	Visual automatic reset	Port Connection Type	SAE-16 ports
Mounting Style	duplex	Flow Rate	40 GPM (151 LPM)
