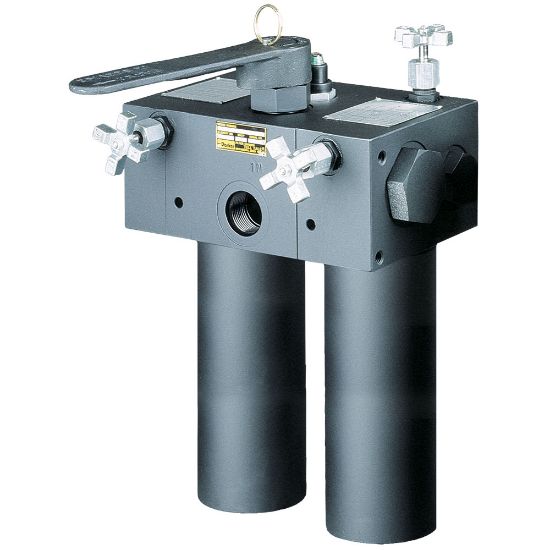

Parker 30PD220QBE2KS162 - High Pressure Inline/Duplex Filter 15P/30P/30PD Series

The Parker 15P/30P Series is a high pressure all aluminum filter assembly that comes in a variety of options. The 15P/30P Series has a rated fatigue pressure of up to 2,000psi and flow rate up to 45gpm.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 30PD220QBE2KS162

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Product Type	Hydraulic Filter
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Filter Element Type	Cartridge
Flow Rate	95.0 L/min	Indicator Pressure Setting	3.5 bar
Bypass Valve Pressure Rating	50.0 psid	Maximum Operating Temperature	107.0 °C
Product Style	Hydraulic Filter	Micron Rating	20Q Microglass
Options	No bypass	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258
Indicator Type	electrical/visual DIN 43650 style connection	Pressure Rating	206.9 bar
Housing Material	bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6	Port Type	SAE-16 ports
Compatible Element	933136Q	Weight	40 lb (18.1 kg)
Seal Material	Nitrile	Micron Rating	20Q Microglass
Options	No bypass	Indicator Type	electrical/visual DIN 43650 style connection
Port Connection Type	SAE-16 ports	Mounting Style	duplex
Flow Rate	40 GPM (151 LPM)
