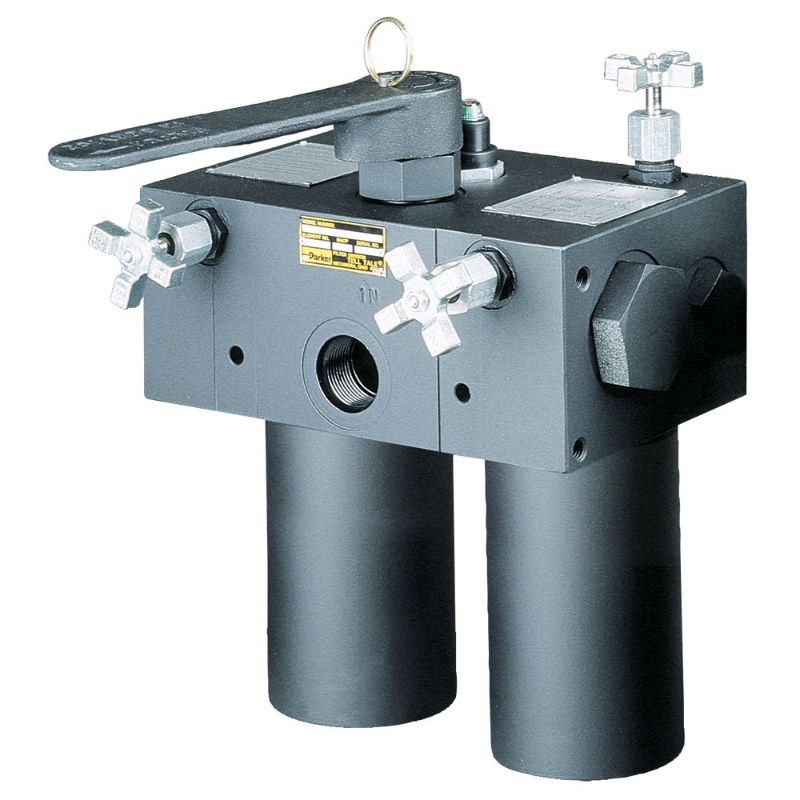

Parker 30PD110QBM2KS164 - High Pressure Inline/Duplex Filter 15P/30P/30PD Series

The Parker 15P/30P Series is a high pressure all aluminum filter assembly that comes in a variety of options. The 15P/30P Series has a rated fatigue pressure of up to 2,000psi and flow rate up to 45gpm.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 30PD110QBM2KS164

$3,405.97

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Product Type	Hydraulic Filter	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Filter Element Type	Cartridge	Flow Rate	25.0 Gal/min
Bypass Valve Pressure Rating	3.5 bar	Maximum Operating Temperature	107.0 °C
Micron Rating	10Q Microglass	Product Style	Hydraulic Filter
Options	SAE-4 drain port on bowl	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258
Indicator Type	visual automatic reset	Pressure Rating	3000 psi
Housing Material	bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6	Indicator Pressure Setting	50 psi
Port Type	SAE-16 ports	Compatible Element	932624Q
Weight	36 lb (16.3 kg)	Seal Material	Nitrile
Flow Rate	25 gpm (95 lpm)	Micron Rating	10Q Microglass
Indicator Type	Visual automatic reset	Options	SAE-4 drain port on bowl
Port Connection Type	SAE-16 ports	Mounting Style	duplex
