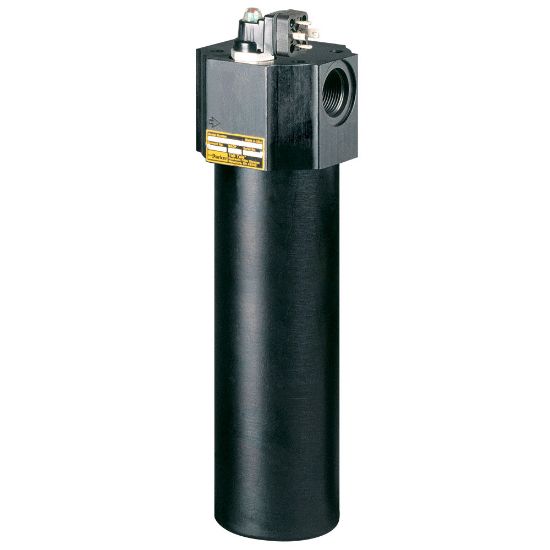

Parker 30P220QBPSKX1 - High Pressure Inline/Duplex Filter 15P/30P/30PD Series

The Parker 15P/30P Series is a high pressure all aluminum filter assembly that comes in a variety of options. The 15P/30P Series has a rated fatigue pressure of up to 2,000psi and flow rate up to 45gpm.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 30P220QBPSKX1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Product Type	Hydraulic Filter
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Options	None
Filter Element Type	Cartridge	Bypass Valve Pressure Rating	50.0 psid
Maximum Operating Temperature	107.0 °C	Product Style	Hydraulic Filter
Micron Rating	20Q Microglass	Port Type	manifold ports
For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258	Indicator Type	indicator pressure port only-side mounted
Pressure Rating	3000 psi	Housing Material	bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6
Indicator Pressure Setting	50 psi	Weight	8.7 lb (3.9 kg)
Flow Rate	208.0 L/min	Compatible Element	933136Q
Seal Material	Nitrile	Options	None
Micron Rating	20Q Microglass	Indicator Type	indicator pressure port only-side mounted
Mounting Style	inline	Port Connection Type	manifold ports
Flow Rate	55 GPM (208 LPM)
