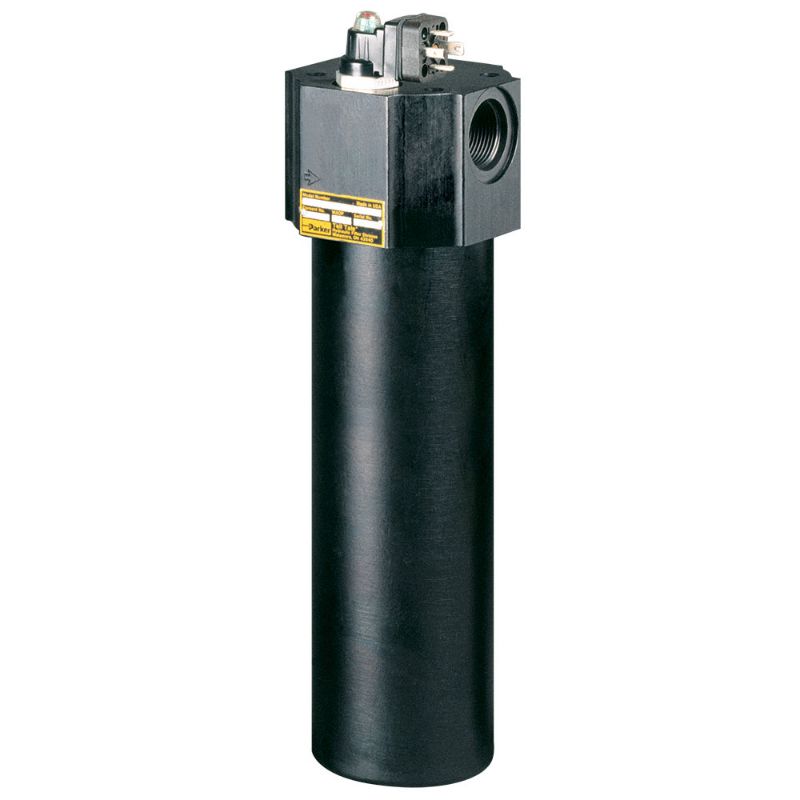

Parker 30P210QBM2KS161 - High Pressure Inline/Duplex Filter 15P/30P/30PD Series

The Parker 15P/30P Series is a high pressure all aluminum filter assembly that comes in a variety of options. The 15P/30P Series has a rated fatigue pressure of up to 2,000psi and flow rate up to 45gpm.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 30P210QBM2KS161

$754.03/each

Products specifications

Attribute name	Attribute value
UOM	EA	Options	none
Indicator Pressure Setting	3.5 bar	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please email Technical Support at [email protected] or call 800-253-1258
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Filter Element Type	cartridge
Maximum Operating Temperature	107.0 °C	Pressure Rating	3000 psi
Bypass Valve Pressure Rating	50.0 psid	Micron Rating	10Q Microglass
Product Style	Hydraulic Filter	Indicator Type	visual automatic reset
Seal Material	nitrile	Compatible Element	932630Q
Weight	8.7 lb (3.9 kg)	Flow Rate	55.0 Gal/min
Product Type	Hydraulic Filter	Housing Material	bowl - impacted aluminum (6061-T6, black powderpainted exterior); head - extruded aluminum (anodized 6061-T6
Port Type	SAE-16 ports	Seal Material	Nitrile
Options	None	Micron Rating	10Q Microglass
Indicator Type	Visual automatic reset	Mounting Style	inline
Flow Rate	55 GPM (208 LPM)	Port Connection Type	SAE-16 ports
