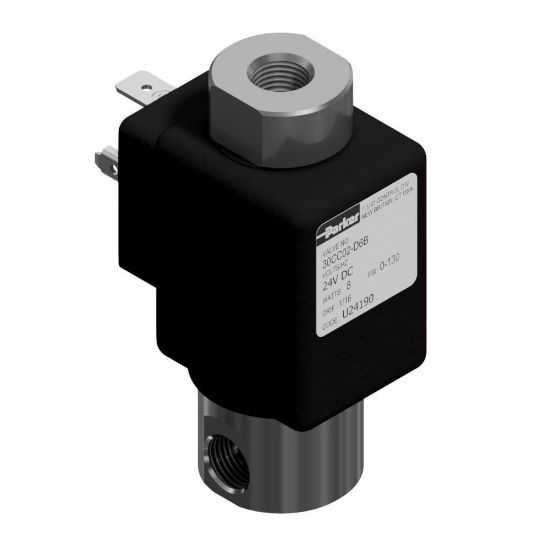

Parker 30CU02GV4D6B - Parker 3-Way Universal, 1/8" NPT General Purpose Solenoid Valves

Parker 3-Way Universal, 1/8" NPT Solenoid Valves provide operating pressures up to 200 psi and flow factors up to 0.38 CV's. They offer a 303 stainless body, multiple mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 30CU02GV4D6B

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Division	Fluid Control Division
Media	General Purpose for Air	Function	Universal
Valve Type	3-Way	Input Voltage	110/50-120/60
Actuation Type	Direct Acting	Number of Ports	3
Minimum Pressure Differential	0 psi	Main Orifice Size	1/16 inch
Additional Options	n/a	Main Flow Coefficient	0.09 Cv
Seal Material	FKM	Port Size	1/8 inch
Body Material	Stainless Steel 303	Maximum Fluid Temperature	240 °F
Maximum Pressure Differential	100 psi (DC)	Exhaust Flow Coefficient	n/a
Power Consumption	8 W (DC)	Coil Specifications Met	Class H
Coil Type	DIN Form A	Exhaust Orifice Size	n/a
Orifice 2 Size	1/16 inch	Product Series	204/304 Series
Flow Coefficient 2	0.1 Cv	Minimum Fluid Temperature	32 °F
Voltage (V)	110/50-120/60	Orifice Main (inch)	1/16
Flow Factor Main (Cv)	0.09	Coil Type	DIN Form A
Power (Watts)	8 Watt (DC)	Maximum Pressure Differential (psi)	100 psi (DC)
