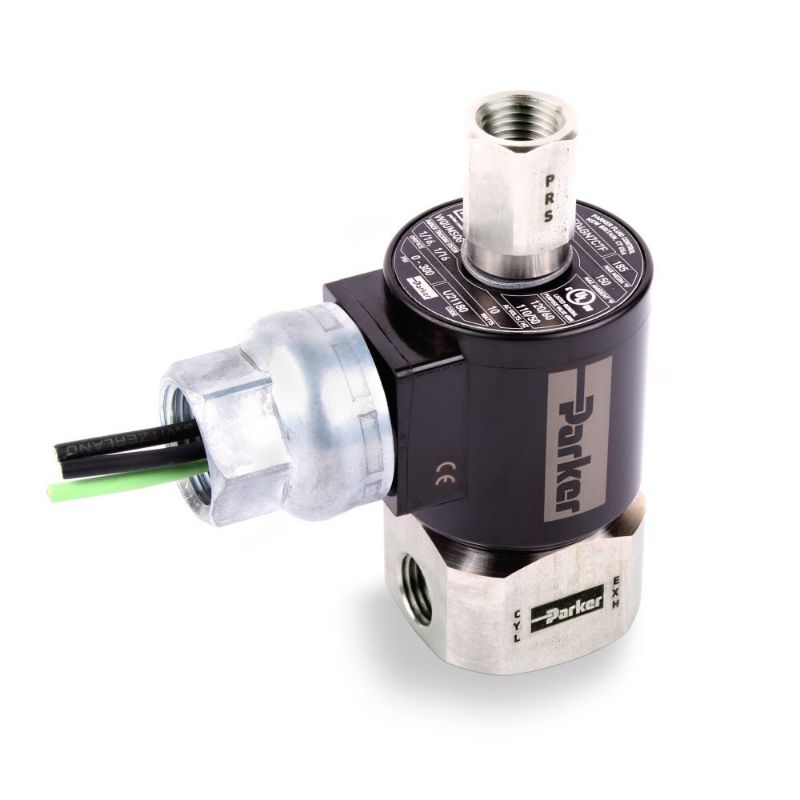

Parker 30CC04PN7C7F - G7 SERIES Solenoid Valves

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 30CC04PN7C7F

$180.09

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid Control Division
Seal Material	NBR	Actuation Type	Direct Acting
Minimum Pressure Differential	0 psi	Input Voltage	120/60 VAC
Body Material	Stainless Steel 303	Orifice Size	1/8 inch
Port Size	NPT 1/4 inch	Power Consumption	10 W
Specifications Met	CULus General Purpose	Maximum Fluid Temperature	185 °F
Maximum Ambient Temperature	150 °F	Coil Specifications Met	IP69
Configuration	Pressure In Body - Out Sleeve	Function	3-Way
Installation	IOM7221	Exhaust Flow Coefficient	0.17 Cv
Preventive Maintenance Kit	7R005	Main Flow Coefficient	0.24 Cv
Maximum Pressure Differential	95 psig	Seal Material	NBR
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Configuration	Normally Closed
Voltage	120/60, 110/50	Body Material	303 Stainless Steel
Port Size (inch)	1/4 NPT	Orifice Size (inch)	1/8
Minimum Pressure Differential (psi)	0	Function	3-Way
Maximum Operating Pressure Differential (psig)	95
