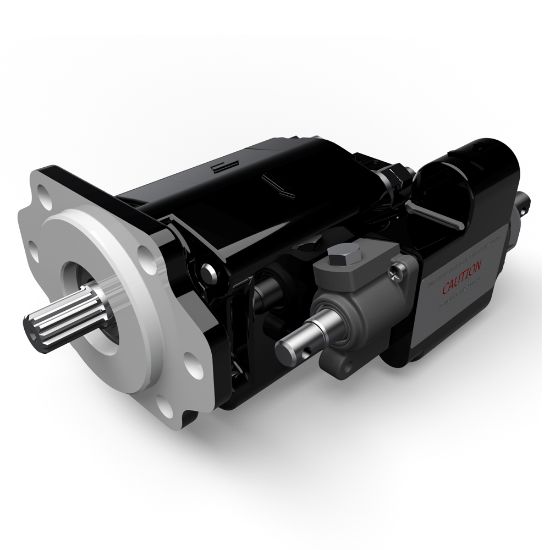

Parker 3089310905 - Cast Iron Pumps – G101/G102 Series

Parker’s G101/G102 series dump pumps provide the most reliable, trouble free performance in the industry for dump truck and trailer applications. Operating pressures up to 172 bar (2,500 psi), speeds up to 2,400 rpm, flows up to 16.9 gpm.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3089310905

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Buna-N	Port Connection	NPT
Filter Included	No	Minimum Fluid Temperature	0 °F
Flow Rate	n/a	Division	Pump & Motor Division
Media	n/a	Weight	20.4 kg (Max)
Port Type	Tapered Thread	Pump Type	Fixed
Shaft Type	SAE	Sensor Type	n/a
Circuit Path	Open	Displacement	up to 64 cm3/rev
Drain Option	No	Product Type	Hydraulic Pump Gear, Fixed Displacement
Body Material	Cast Iron	Configuration	Single
Port Location	Rear Ports	Control Method	n/a
For Fluid Type	Phosphate-ester	Shaft Diameter	7/8 inch
Mounting Option	DIN	Maximum Flow Rate	n/a
Operating Pressure	up to 172 bar	Maximum Noise Level	n/a
Charge Pump Included	No	Maximum Displacement	3.9 inch3/rev
Radial Load Capacity	n/a	Direction of Rotation	Bi-Rotational
Inlet Connection Size	1-1/4 inch	Thru-Drive Capability	No
Outlet Connection Size	NPT 3/4 inch (Tank-plugged)	Maximum Operating Speed	2400 RPM
Maximum Fluid Temperature	80 °C	Energy Recovery Capability	No
Maximum Operating Pressure	172 bar	Maximum Kinematic Viscosity	7500 SUS
Minimum Kinematic Viscosity	50 SUS	Rotation	CCW
Configuration	4 BOLT SQUARE, SAE B / ANSI 101-4	Additional Options	Air Shift Installed
