Cast Iron Pumps – G101/G102 Series

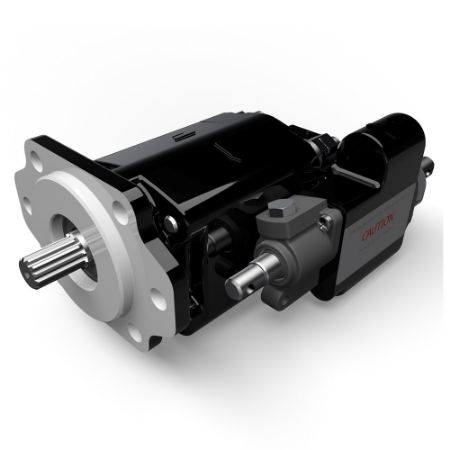

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.

Parker’s G101/G102 fixed displacement gear pumps offer high performance and high endurance due to its cast iron construction, making it an ideal selection for the Vocational & Municipal Equipment market. It is available as a standard pump with integrated valve for raising and lower dump beds, with integral relief valve.

Markets:
• Vocational & Municipal Equipment

Features/Benefits:
• Three-piece cast iron construction for distribution flexibility
• Durable high-strength cast iron body for excellent power to weight ratio
• Cast Iron construction for durability
• Balanced Thrust Plates minimize friction and leakage
• Roller bearings for durability

Applications:
• Dump Truck
• Dump Trailer

Technical Specifications:
• Flow is 16.9 gpm (64 lpm)
• Displacement is 3.94 cir (64.6 cc/rev)
• Operating pressures up to 172 bar (2,500 psi)
• Speeds up to 2,400 rpm
• Volumetric efficiencies up to 94%
• CW, CCW, and Bi-rotational pumps available
• SAE shafts, flanges and porting
• Integrated relief valve and load hold valve
• Integrated raise/neutral/lower valve
• Air shift valve available

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Minimum Fluid Temperature	Port Connection	Maximum Kinematic Viscosity	Inlet Connection Size	Maximum Operating Pressure	Seal Material	Mounting Option	Weight	Thru-Drive Capability	Maximum Operating Speed	Sensor Type	Shaft Type	For Fluid Type	Division	Port Location	Energy Recovery Capability	Configuration	Outlet Connection Size	Charge Pump Included	Direction of Rotation	Body Material	Maximum Flow Rate	Maximum Displacement	Displacement	Radial Load Capacity	Minimum Kinematic Viscosity	Media	Pump Type	Shaft Diameter	Maximum Noise Level	Operating Pressure	Control Method	Flow Rate	Maximum Fluid Temperature	Port Type	Circuit Path	Product Type	Filter Included	Drain Option	Rotation	Configuration	Additional Options
3089310416	Quote Required	Quote Required	$930.75/each	EA	0 °F	NPT	7500 SUS	1-1/4 inch	172 bar	Buna-N	SAE	20.4 kg (Max)	No	2400 RPM	n/a	SAE	Phosphate-ester	Pump & Motor Division	Rear Ports	No	Single	NPT 3/4 inch (Tank-plugged)	No	Bi-Rotational	Cast Iron (Grey)	n/a	3.9 inch3/rev	up to 3.9 inch3/rev	n/a	50 SUS	n/a	Fixed	7/8 inch	n/a	up to 2500 psi	n/a	n/a	80 °C	Tapered Thread	Open	G102	No	No	CW	4 BOLT SQUARE, SAE B / ANSI 101-4	No Air Shift
3089310418	Quote Required	16 In Stock	$930.75/each	EA	0 °F	NPT	7500 SUS	NPT	172 bar	Buna-N	DIN	45 lb (Max)	No	2400 RPM	n/a	SAE	Standard Hydraulic Fluids	Pump & Motor Division	Rear Ports	No	Single	NPT 3/4 inch (Cylinder)	No	Counterclockwise	Cast Iron	n/a	64 cm3/rev	up to 3.9 inch3/rev	n/a	50 SUS	n/a	Gear	7/8 inch	n/a	up to 2500 psi	n/a	n/a	180 °F	Tapered Thread	Open	Hydraulic Pump Gear, Fixed Displacement	No	No	CCW	4 BOLT SQUARE, SAE B / ANSI 101-4	No Air Shift
3089310913	Quote Required	2 Limited Stock	$1,062.00/each	EA	-20 °C	NPT	7500 SUS	1-1/4 inch	172 bar	Buna-N	DIN	20.4 kg (Max)	No	2400 RPM	n/a	SAE	Standard Hydraulic Fluids	Pump & Motor Division	Rear Ports	No	Single	NPT 3/4 inch (Cylinder)	No	Counterclockwise	Cast Iron (Grey)	n/a	64 cm3/rev	up to 3.9 inch3/rev	n/a	50 SUS	n/a	Gear	DIN 5462	n/a	up to 2500 psi	n/a	n/a	180 °F	Tapered Thread	Open	Hydraulic Pump Gear, Fixed Displacement	No	No	CW	4-BOLT DIN FLANGE	Air Shift Installed
