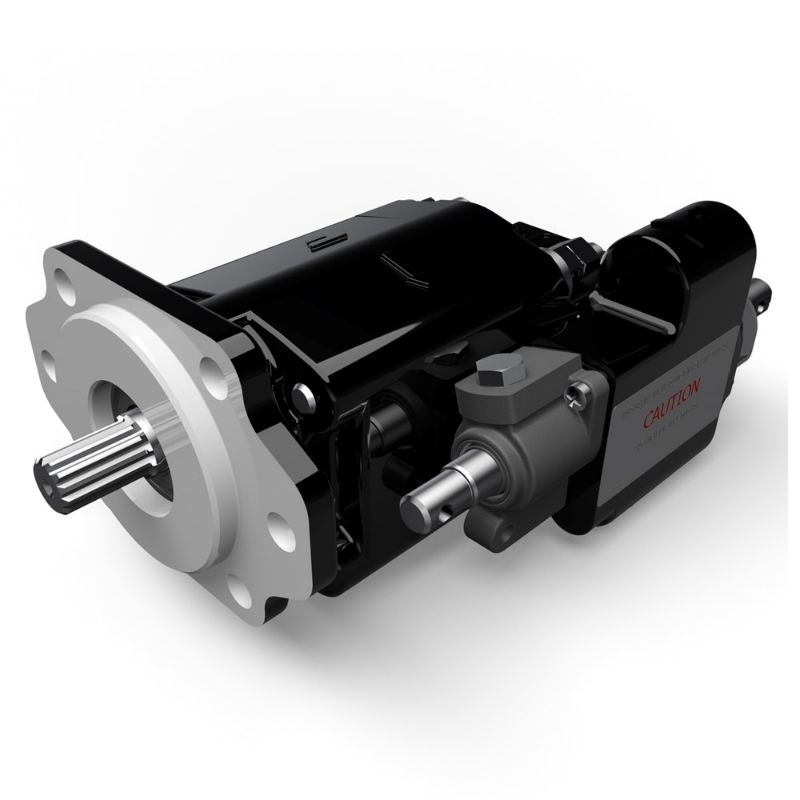

Parker 3089310418 - Cast Iron Pumps – G101/G102 Series

Parker’s G101/G102 series dump pumps provide the most reliable, trouble free performance in the industry for dump truck and trailer applications. Operating pressures up to 172 bar (2,500 psi), speeds up to 2,400 rpm, flows up to 16.9 gpm.

Availability:	Quote Required
Partner Available:	16 In Stock

Brand Parker

Part No. 3089310418

$901.50

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Buna-N
Port Connection	NPT	Filter Included	No
Maximum Fluid Temperature	180 °F	Minimum Fluid Temperature	0 °F
Flow Rate	n/a	Division	Pump & Motor Division
Media	n/a	Weight	45 lb (Max)
Port Type	Tapered Thread	Pump Type	Gear
Shaft Type	SAE	Sensor Type	n/a
Circuit Path	Open	Displacement	up to 3.9 inch3/rev
Drain Option	No	Product Type	Hydraulic Pump Gear, Fixed Displacement
Body Material	Cast Iron	Configuration	Single
Port Location	Rear Ports	Control Method	n/a
For Fluid Type	Standard Hydraulic Fluids	Shaft Diameter	7/8 inch
Mounting Option	DIN	Maximum Flow Rate	n/a
Operating Pressure	up to 2500 psi	Maximum Noise Level	n/a
Charge Pump Included	No	Maximum Displacement	64 cm3/rev
Radial Load Capacity	n/a	Direction of Rotation	Counterclockwise
Inlet Connection Size	NPT	Thru-Drive Capability	No
Outlet Connection Size	NPT 3/4 inch (Cylinder)	Maximum Operating Speed	2400 RPM
Energy Recovery Capability	No	Maximum Operating Pressure	172 bar
Maximum Kinematic Viscosity	7500 SUS	Minimum Kinematic Viscosity	50 SUS
Rotation	CCW	Configuration	4 BOLT SQUARE, SAE B / ANSI 101-4
Additional Options	No Air Shift
