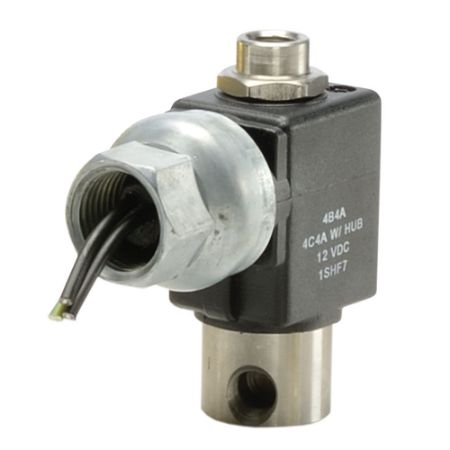

Parker 3-Way Universal, 1/8" NPT General Purpose Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Parker's 3-Way Universal Direct Acting 1/8" NPT Solenoid Valves are used in a wide variety of applications ideally suited for low to medium pressure applications that do not require a minimum operating pressure differential. Ideally suited for general purpose air, liquids and gases, these valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation
Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff
Applications:
• Single acting spring return cylinder control
• Selection or diversion of process media
• HVAC damper control
• Instrumentation Equipment
• Pneumatic positioning
• Automatic dispensing equipment
• Gas sampling
• Small compressors
• Water treatment
• Air dryers
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Textile and Dry Cleaning Equipment
• Irrigation Equipment
| Action | Part No. | Availability | Partner Available | Price | UOM | Seal Material | Actuation Type | Exhaust Flow Coefficient | Maximum Pressure Differential | Power Consumption | Main Orifice Size | Port Type | Maximum Fluid Temperature | Function | Valve Type | Minimum Fluid Temperature | Exhaust Orifice Size | Additional Options | Flow Coefficient 2 | Product Series | Orifice 2 Size | Coil Specifications Met | Coil Type | Number of Ports | Media | Division | Body Material | Port Size | Main Flow Coefficient | Minimum Pressure Differential | Input Voltage | Voltage (V) | Maximum Pressure Differential (psi) | Coil Type | Power (Watts) | Orifice Main (inch) | Flow Factor Main (Cv) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30CU02EV4B2F | Quote Required | $106.39/each | EA | FKM | Direct Acting | n/a | 150 psi (AC) | 10 W (AC) | 3/64 inch | NPT | 240 °F | Universal | 3-Way | 32 °F | n/a | n/a | n/a | 204/304 Series | n/a | Class F | Metal Enc, 18" Leads | 3 | General Purpose for Air | Fluid Control Division | Stainless Steel 303 | 1/8 inch | 0.05 Cv | 0 psi | 110/50-120/60 | 110/50-120/60 | 150 psi (AC) | Metal Enc, 18" Leads | 10 Watt (AC) | 3/64 | 0.05 | ||
| 30CU02EV4C4E | Quote Required | $126.41/each | EA | FKM | Direct Acting | n/a | 150 psi (AC) | 10 W (AC) | 3/64 inch | NPT | 240 °F | Universal | 3-Way | 32 °F | n/a | n/a | n/a | 204/304 Series | n/a | Class F | 1/2" Conduit, 18" Leads | 3 | Liquids and Gases | Fluid Control Division | Stainless Steel 303 | 1/8 inch | 0.05 Cv | 0 psi | 24/60 | 110/50-120/60 | 150 psi (AC) | 1/2" Conduit, 18" Leads | 10 Watt (AC) | 3/64 | 0.05 | ||
| 30CU02GV4B4F | Quote Required | 6 In Stock | $117.76/each | EA | FKM | Direct Acting | n/a | 100 psi (AC) | 10 W (AC) | 1/16 inch | NPT | 240 °F | Universal | 3-Way | 32 °F | n/a | n/a | n/a | 204/304 Series | n/a | Class F | Integrated, 18" Leads | 3 | General Purpose for Air | Fluid Control Division | Stainless Steel 303 | 1/8 inch | 0.09 Cv | 0 psi | 110/50-120/60 | 110/50-120/60 | 100 psi (AC) | Integrated, 18" Leads | 10 Watt (AC) | 1/16 | 0.09 |
