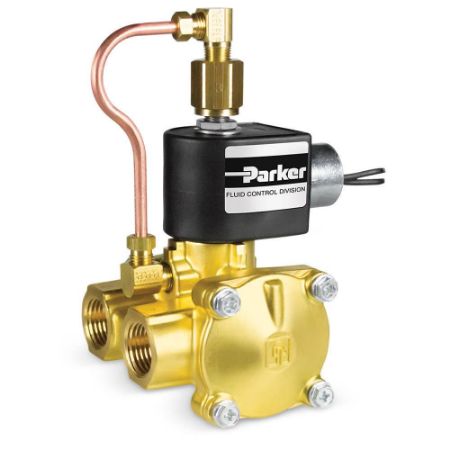

Parker 3-Way Normally Closed, 3/4" NPT General Purpose Solenoid Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's 3-Way Normally Closed, Direct Acting 3/4" NPT Solenoid Valves are used in a wide variety of applications ideally suited for low to medium pressure applications that do not require a minimum operating pressure differential. Ideally suited for general purpose air, liquids and gases, these valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.

Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation

Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff

Applications:
• Single acting spring return cylinder control
• Selection or diversion of process media
• HVAC damper control
• Instrumentation Equipment
• Pneumatic positioning
• Automatic dispensing equipment
• Gas sampling
• Small compressors
• Water treatment
• Air dryers
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Textile and Dry Cleaning Equipment
• Irrigation Equipment

View as Grid List

Sort by

Display per page

Action	Part No.	Availability	Partner Available	Price	UOM	Port Type	Port Size	Body Material	Division	Media	Function	Valve Type	Input Voltage	Seal Material	Orifice 2 Size	Number of Ports	Flow Coefficient 2	Coil Specifications Met	Minimum Fluid Temperature	Maximum Fluid Temperature	Exhaust Flow Coefficient	Power Consumption	Exhaust Orifice Size	Actuation Type	Product Series	Coil Type	Maximum Pressure Differential	Minimum Pressure Differential	Additional Options	Main Orifice Size	Main Flow Coefficient	Voltage (V)	Power (Watts)	Coil Type	Maximum Pressure Differential (psi)
	73312BN52NJ0N0C222P3	Quote Required	Quote Required	TBD	EA	NPT	3/4	Brass	Fluid Control Division	General Purpose for Air	Normally Closed (NC)	3-Way	110/50-120/60	NBR	n/a	3	n/a	NEMA 4X	0	185	n/a	10 W (AC)	n/a	Manual	7000 Series	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	180 psi (AC)	10	Exhaust Return Pipe	3/4	7.3	110/50-120/60	10 Watt (AC)	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	180 psi (AC)
	73312BN52NJ0N0H111P3	Quote Required	Quote Required	$968.52/each	EA	NPT	3/4 inch	Brass	Fluid Control Division	General Purpose for Air	Normally Closed (NC)	3-Way	110/50-120/60	NBR	n/a	3	n/a	NEMA 7	0 °F	185 °F	n/a	10 W (AC)	n/a	Manual	7000 Series	1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9	180 psi (AC)	10 psi	Exhaust Return Pipe	3/4 inch	7.3 Cv	110/50-120/60	10 Watt (AC)	1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9	180 psi (AC)
