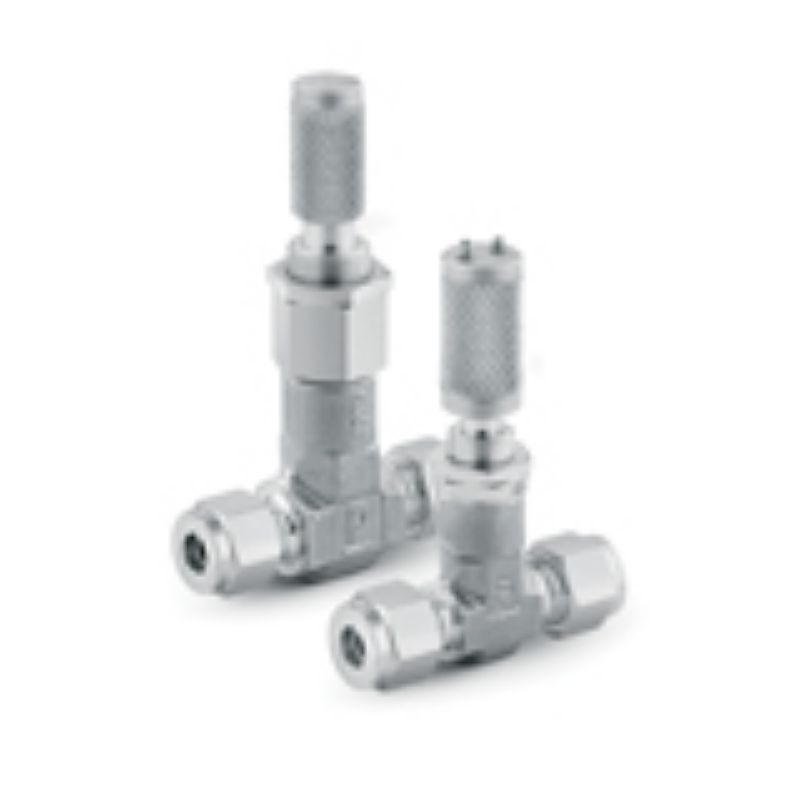

Parker 2F-NMA-BN-B-K - Metering valve, 1000 PSI - NM Series

Parker's NM Series Metering Valves provide accurate and stable control of flow rates in various applications up to 1,000 PSI (138 BAR). These medium flow metering valves have a Cv of .055 for Inline and .057 for Angle body pattern.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2F-NMA-BN-B-K

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-10 °C	Maximum Operating Temperature	250 °F
Maximum Operating Pressure	69 bar	Connection 1 Size	1/8 inch
Connection 2 Size	1/8 inch	Division	Instrumentation Products Division
Fitting Type	Angle	Handle Type	Knurled
Body Material	Brass-Nickel-Plated	Seal Material	Nitrile
Connection 1 Size	1/8"	Connection 2 Size	1/8"
Maximum Working Temperature (F)	250	Connection 1 Style	Two Ferrule Compression
Connection 2 Style	Two Ferrule Compression	Body Shape	Angle
Handle	Knurled	Minimum Working Temperature (C)	-10
Body Material	Brass-Nickel Plated	Maximum Working Pressure (Bar)	69
Maximum Working Pressure (psi)	1,000

Product resources

Literature and Reference Materials
