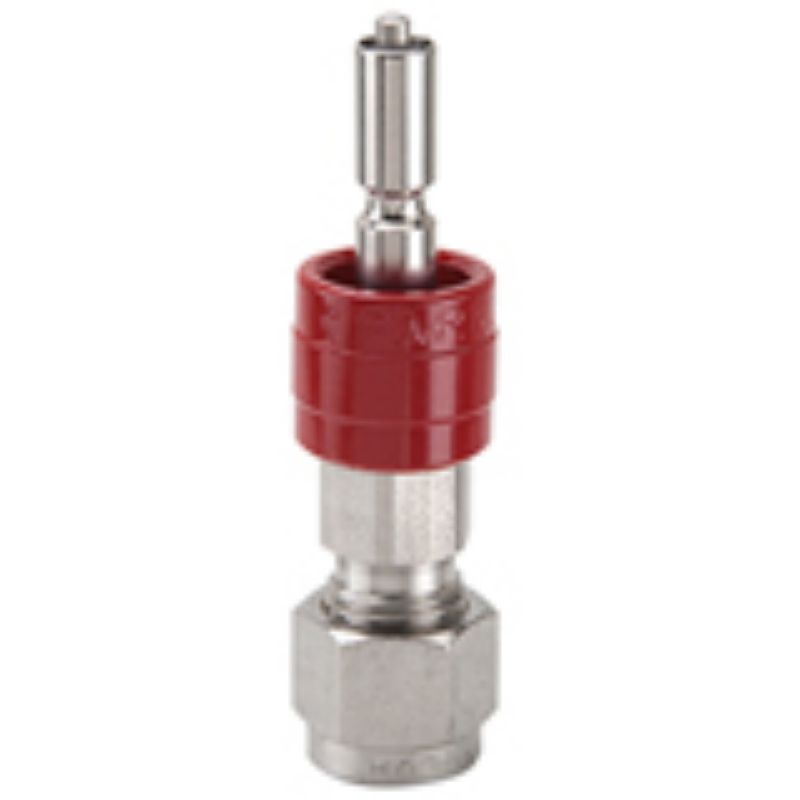

Parker 2A-Q4VY-SS - Stainless Steel, Instrumentation Quick Couplings - CPI Series

Parker's stainless steel instrumentation quick couplers and nipples are ideal for vacuum or pressure applications where fluid or gas lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2A-Q4VY-SS

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Quick Coupling Division
Maximum Operating Pressure	3000 psi	Maximum Operating Temperature	400 °F
Application	Instrumentation	Body Material	316 Stainless Steel
Seal Material	Fluorocarbon	Hose Inside Diameter	na
Minimum Operating Temperature	-15 °F	Valve Type	Poppet
Product Type	Push-to-Connect	Vacuum Pressure Rating	0.05 mm-Hg
Coupling Half	Male Nipple	Body Size (inch)	1/4
Connection Thread Size (inch)	na	Connection Type	A-Lok tube end
Tube Size (inch)	1/8	Maximum Operating Pressure	3000
