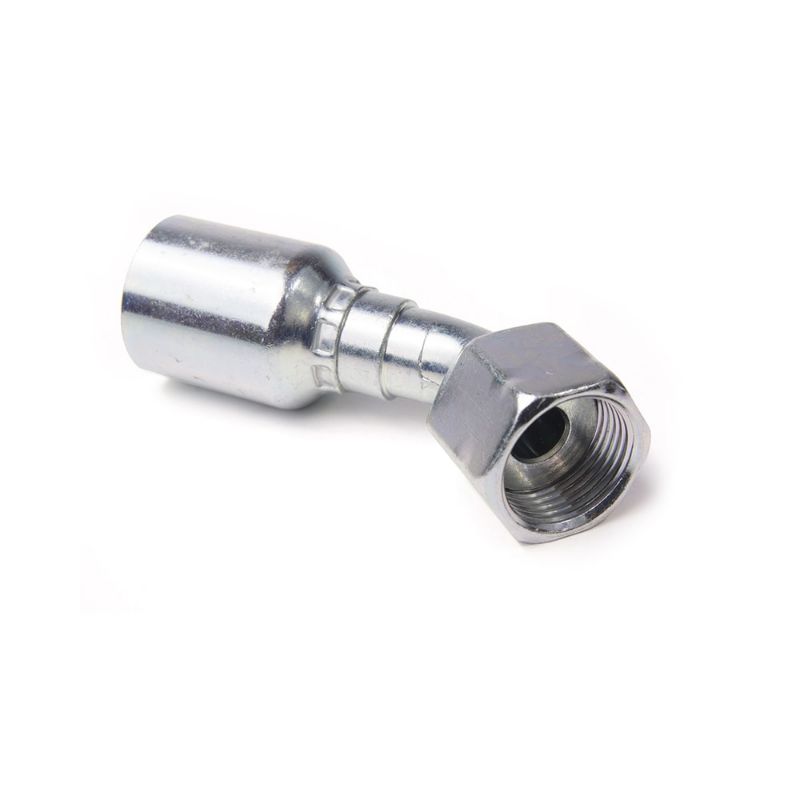

Parker 1J756-6-4 - Global Fittings - 56 Series - Inch

Name: Parker 1J756-6-4 - Global Fittings - 56 Series - Inch
SKU: 1J756-6-4
Price: 29.91 USD
Availability: InStock

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

AFP Availability:

3 In Stock

Jacksonville, FL

Partner Available:

Quote Required

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 1J756-6-4

$29.91/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Connection 2 Type	Seal-Lok®	Connection Length	33 mm Cut-off allowance
Hex Size	n/a	Shipping Weight	0.093 lb
Application	Construction Equipment	Hex Size 2	n/a
Shape	Elbow 45°	Division	Parflex Division
Connection 1 Type	Hose	Tube Outside Diameter	n/a
Hex Size 1	13/16 inch (see drawing legend J)	Maximum Operating Pressure	5000 psi (Dependent on hose)
Brand	Parker	Industry	Off-road Machinery
For Fluid Type	Hydraulic Fluids	Configuration	Hose to Port
Connection 2 Size	11/16"-16 inch Thread	Fitting Length	58 mm (see drawing legend A)
Dimensional Weight	0.0529 lb	Division	Parflex Division
Technology	Fluid & Gas Handling	Coating	Chromium 6 Free-plated
Connection 1 Size	1/4 inch Hose I.D.	Materials of Construction	Steel
Hose I.D. (inch)	0.25"	Length (inch)	2.27"
Connection 2 Size	11/16"-16	Product Style	Female Seal-Lok - Swivel - 45° Elbow
