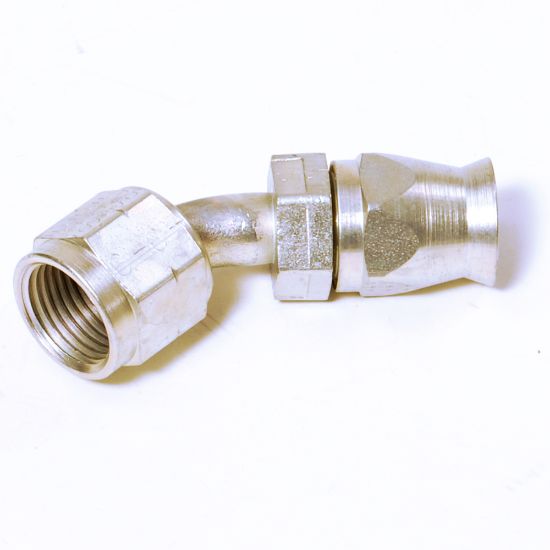

Parker 27790-6-6 - Field Attachable Fittings for PTFE Hose - 90 Series

Parker's 90 Series fittings are used with 919/919B PTFE hoses from Parflex division.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 27790-6-6

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Parflex Division
Industry	Transportation	Technology	Fluid & Gas Handling
Specifications Met	N/A	Product Series	90
Coating	Chromium 6 Free-plated	Division	Parflex Division
Product Type	Hose Fittings	Configuration	Hose to Port
Connection 1 Size	-6 (Size)	Connection 1 Type	Hose
Tube Outside Diameter	n/a	Maximum Operating Pressure	3000 psi (Dependent on hose)
Body Material	Steel	Hex Size	1-1/8 inch (see drawing legend H)
Application	Fluid Control	For Fluid Type	Chemicals
Connection 2 Size	5/8"-18 inch Thread	Connection 2 Type	45° Flare SAE
Hex Size 1	3/4 inch (see drawing legend J)	Fitting Length	1.86 inch (see drawing legend A)
Shape	Elbow 45°	Connection Length	66 mm
Hose I.D. (inch)	0.313"	Length (inch)	2.55"
Connection 2 Size	5/8"-18	Product Style	Female SAE 45 / Swivel - 45° Elbow
