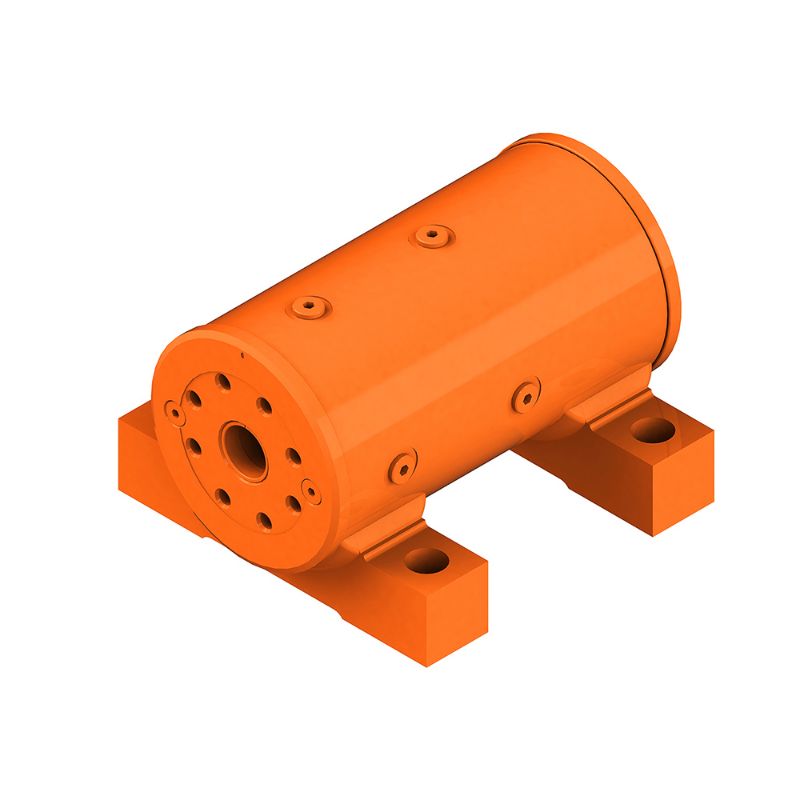

Picture of Parker 27595 - Helical Hydraulic Rotary Actuator - Helac L20-Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 27595 - Helical Hydraulic Rotary Actuator - Helac L20-Series

The Helac L20 Series is a cost-effective helical hydraulic rotary actuator, easily designed into a wide range of applications. Helac’s hydraulic rotary actuators feature extremely high thrust capacity and high shock resistance with 180° rotation.
AFP Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 27595
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionCylinder DivisionTechnologyHydraulics
Weight27Maximum Operating Pressure3000
DivisionCylinder DivisionApplicationHydraulic
Mounting TypeFootBrandHelac
IndustryHydraulicProduct TypeHelical
Product SeriesL20 SeriesWidthVaries See Catalog for Dimensions
HeightVaries per Model. See Catalog for Specifications.LengthVaries per Model. See Catalog for Specifications.
Rotation Angle180Operating Pressure3000
Maximum Output Torque3000Displacement8.05
Drive Torque4500Torque Rating4500
Holding Torque11800Straddle Moment22500
Cantilever Moment12000Axial Load Capacity1100
Radial Load Capacity3050Model NumberL20-4.5-E-FT-180-S1-O-H
