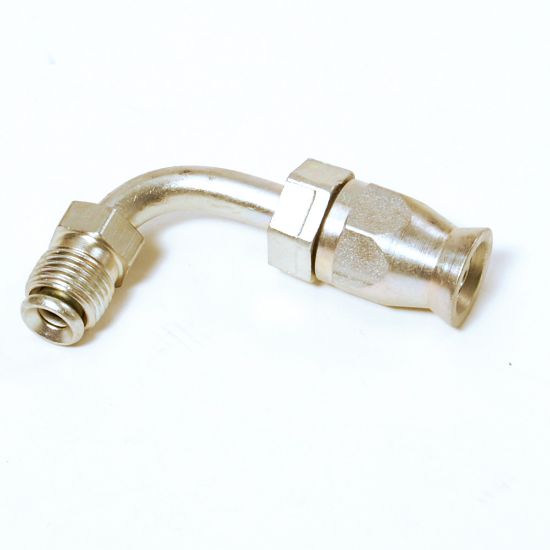

Parker 26990-4-4 - Field Attachable Fittings for PTFE Hose - 90 Series

Parker's 90 Series fittings are used with 919/919B PTFE hoses from Parflex division.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 26990-4-4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Division	Parflex Division
Technology	Fluid & Gas Handling	Connection 2 Type	Male
Maximum Operating Pressure	207 bar	Specifications Met	N/A
Product Series	90	Coating	Chromium 6 Free-plated
Division	Parflex Division	Product Type	Hose Fittings
Configuration	Hose to Port	Connection 1 Type	Hose
Tube Outside Diameter	n/a	Body Material	Steel
Hex Size	9/16 inch (see drawing legend H)	Application	Fluid Control
Industry	Semiconductor	For Fluid Type	Pneumatic Media
Connection 1 Size	4.8 mm	Connection Length	1-1/2 inch Cut-off allowance (see drawing legend B)
Hex Size 1	7/16 inch (see drawing legend J)	Shape	Elbow 90°
Connection 2 Size	7/16"-24 inch Thread	Fitting Length	1.79 inch (see drawing legend A)
Hose I.D. (inch)	0.188"	Length (inch)	2.03"
Connection 2 Size	7/16"-24	Product Style	Male Inverted Swivel 90° Elbow
