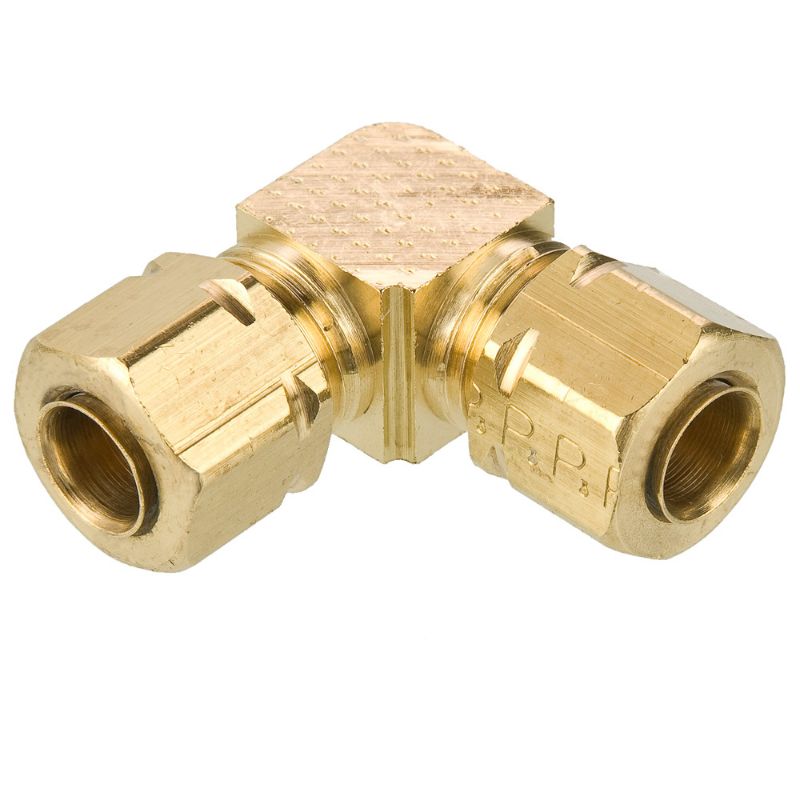

Parker 265CA-4 - Brass Compression Fittings, Compress-Align

Name: Parker 265CA-4 - Brass Compression Fittings, Compress-Align
SKU: 265CA-4
Price: 10.42 USD
Availability: InStock

Parker's Compress-Align fittings require no flaring, soldering or other preparation of tubing. The captive sleeve is always oriented for correct installation, visible for inspection before and after installation.

AFP Availability:

5 In Stock

North Chesterfield, VA

Partner Available:

26 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 265CA-4

$10.42/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Connection Type	NPTF	Body Material	Brass
Nut Material	Brass	Media	Water, air, inert and non-combustible gasses
Maximum Operating Temperature	250 °F	Application	Compressors, Machine Tools, Dispensing, Pumps, Purification
Sleeve Material	Brass	Minimum Operating Temperature	-54 °C
Maximum Operating Pressure	2800 psi	Tube Material	Copper, Aluminum, TFE, FEA, PFA, Thermoplastic
Shape	Elbow 90°	Configuration	Tube to Tube
Connection 1 Type	Compression	Connection 2 Type	Compression
Connection 1 Tube Outside Diameter	1/4" (O.D.)	Connection 2 Tube Outside Diameter	1/4" (O.D.)
Body Material	Brass, Extruded
