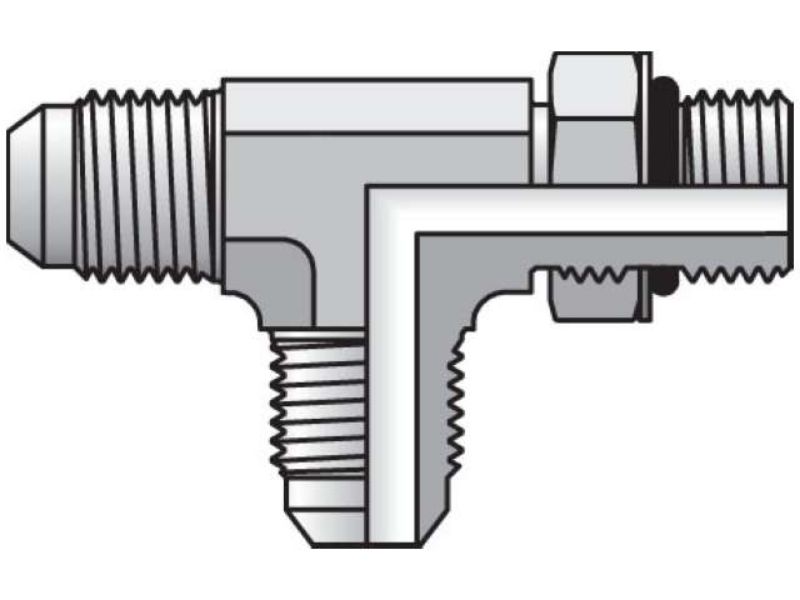

Parker 24 R5OX-S FKM - Triple-Lok 37° Tee R5OX

Triple-Lok - Straight Thread Run Tee 37° Flare / SAE-ORB / 37° Flare

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 24 R5OX-S FKM

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Material	Steel	UOM	EA
Pkg Qty/UOM	1 EA	End 1	1 1/2 Inch
Pkg Qty	1	O-Ring/Seal Material	Fluorocarbon
End 2	1 7/8-12 UN/UNF-2A	End 3	1 1/2 Inch
Parker Group	Fluid Connector	Parker Division	Tube Fitting
Material	Steel	Inch/Metric	Inch
End 1	1 1/2 Inch	End 1 Type	Inch
Configuration Type	Tee	O-Ring/Seal Material	Fluorocarbon
Series	37°	Tube Fitting/Adapter Type	37°, Triple-Lok
End 2 Type	UN/UNF-2A	Trade Name	Triple-Lok
End 3 Type	Inch	Configuration Sub-Type	Straight Thread Run Tee 37° Flare / SAE-ORB / 37° Flare
End 2	1 7/8-12 UN/UNF-2A	End 3	1 1/2 Inch

Product resources

Triple-Lok Flare Tube Fittings (PDF)
