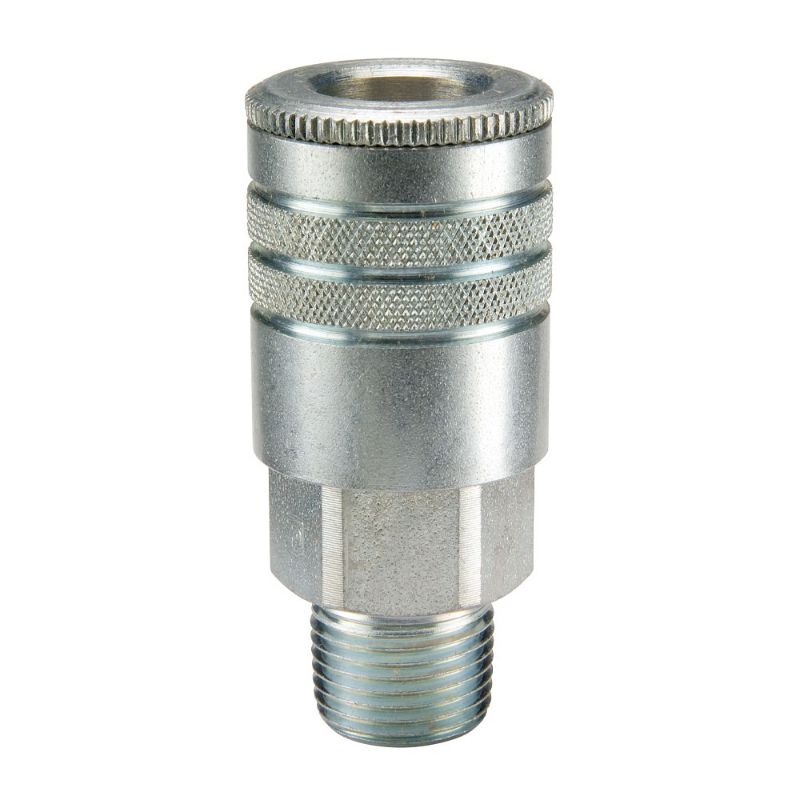

Parker 24 - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

AFP Availability:

18 In Stock

North Chesterfield, VA	10
Summerville, SC	8

Partner Available:

290 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 24

$33.78/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Maximum Operating Pressure	300 psi	Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Valve Type	Tubular	Dimensional Weight	0.07997601918465227 lb
Coupling Half	Coupler	Media	Low pressure fluids and compressed air
Lock Type	Locking balls	Maximum Operating Temperature	250 °F
Division	Quick Coupling Division	Sleeve Type	Manual
Plating Type	Zinc with clear trivalent chromate	Application	Air
Minimum Operating Temperature	-40 °F	Body Material	Steel
Body Material	Steel	Body Size (inch)	3/8
Connection Thread Size (inch)	3/8 - 18	Thread Style	Male
Connection Type	NPTF	Connection Hose I.D. (inch)	na
