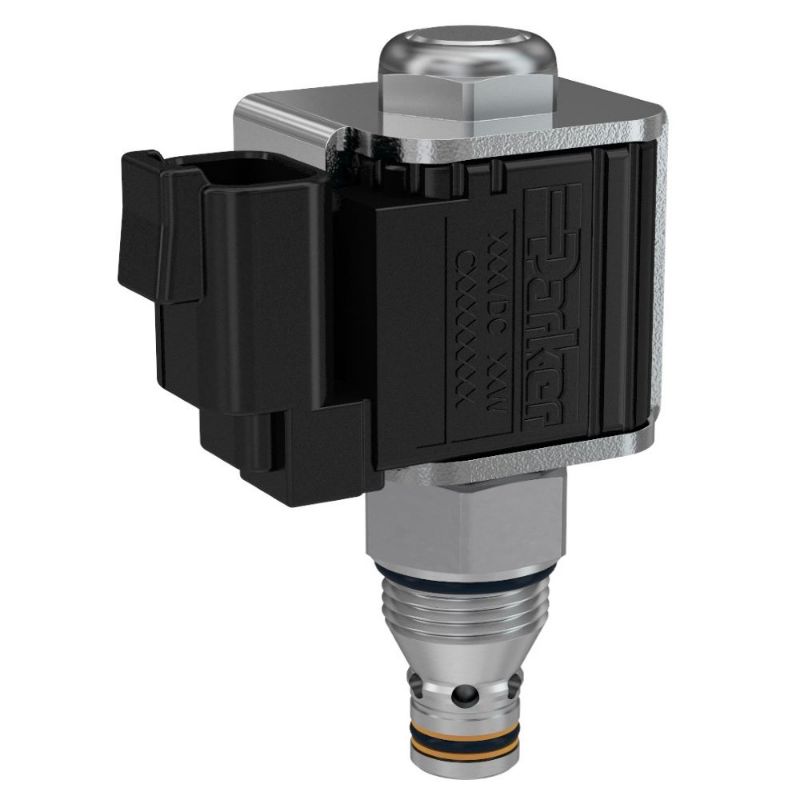

Parker GS028600N - 2 Way Poppet Type Bi-Directional Solenoid Valve

Parker’s 2-way bi-directional poppet solenoid valves block flow both directions with very low leakage and are available in normally-open or normally closed configurations. Capable of pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm).

AFP Availability:	Quote Required
Partner Available:	10 In Stock

Brand Parker

Part No. GS028600N

$280.71/each

Products specifications

Attribute name	Attribute value
UOM	EA	Coil Nut Tightening Torque	4.1 Nm
Weight	0.31 lb	Actuation Type	Electrical
Maximum Operating Pressure	5000 psi	Connection Size	N/A
Response Time	40 ms	Seal Material	Nitrile
Specifications Met	N/A	Flow Rate	34 L/min
Wire Mesh Screen Included	No	Configuration	Normally Open
Seat Material	Steel	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Function	2-way	Bore Diameter	N/A
Valve Material	All parts steel. All operating parts hardened steel	ANSI Flange Class	N/A
Flow Direction	Bi-directional	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Maximum Inlet Pressure Rating	5000 psi
Leak Rate	5 drops/min	Override Functionality	N/A
Coil Type	1/2" Super Coil High Watt (CCP)	Cavity Size	C08-2
Maximum Operating Temperature	+250 °F	Installation Torque	30 Nm
Division	Hydraulic Systems Division	Minimum Operating Temperature	-30 °F
Application	Mobile Hydraulics, Industrial Hydraulics	Flange Face Type	N/A
Operation Type	Solenoid operated	Maximum Flow Rate	9 Gal/min
Body Material	N/A	Mounting Type	Screw in cartridge valve
Input Voltage	85% of rated voltage at 72°F (20°C) min	Operating Temperature	-30 to +250 °F
Seal Material	Nitrile	Configuration	Normally Open
Maximum Inlet Pressure Rating	5000 PSI, 350 BAR	Flow Rate	9 GAL/MIN, 34 L/MIN
Actuation Type	Electrical	Wire Mesh Screen Included	No
