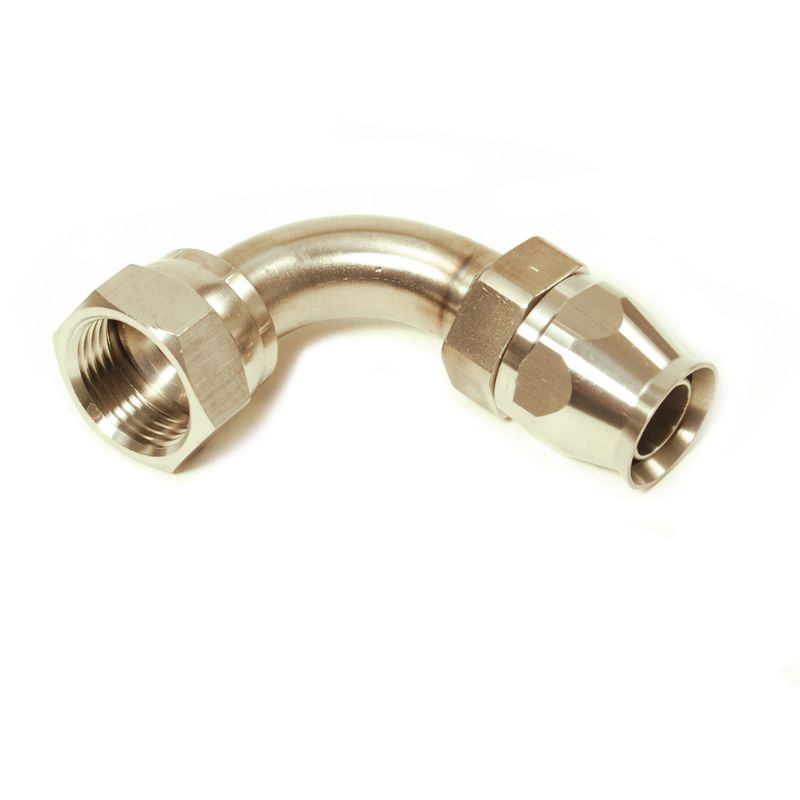

Parker 23990-6-6 - Field Attachable Fittings for PTFE Hose - 90 Series

Parker's 90 Series fittings are used with 919/919B PTFE hoses from Parflex division.

AFP Availability:	Quote Required
Partner Available:	12 In Stock

Brand Parker

Part No. 23990-6-6

$29.64/each

Products specifications

Attribute name	Attribute value
UOM	EA	Product Series	90
Industry	Transportation	Maximum Operating Pressure	3000 psi (Dependent on hose)
Brand	Parker	Technology	Fluid & Gas Handling
Division	Parflex Division	Connection 2 Size	9/16"-18 inch Thread
Fitting Length	47 mm	Configuration	Hose to Port
Dimensional Weight	0.1177 lb	For Fluid Type	Water
Body Material	Steel	Connection 1 Size	-6 (Size)
Hex Size	11/16 inch (see drawing legend H)	Connection 2 Type	JIC 37°
Coating	Chromium 6 Free-plated	Connection Length	77 mm
Hex Size 1	11/16 inch (see drawing legend J)	Tube Outside Diameter	n/a
Connection 1 Type	Hose	Specifications Met	n/a
Application	Instrumentation	Division	Parflex Division
Shape	Elbow 90° Short Drop	Product Type	Hose Fittings
Hose I.D. (inch)	0.313"	Connection 2 Size	9/16"-18
Length (inch)	1.86"	Product Style	Female JIC 37° - Swivel - 90° Elbow - Short Drop
