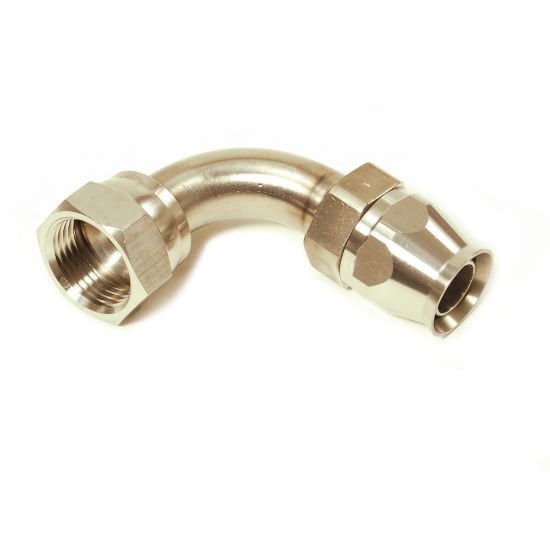

Parker 23990-4-4 - Field Attachable Fittings for PTFE Hose - 90 Series

Parker's 90 Series fittings are used with 919/919B PTFE hoses from Parflex division.

AFP Availability:	Quote Required
Partner Available:	3 In Stock

Brand Parker

Part No. 23990-4-4

$28.08/each

Products specifications

Attribute name	Attribute value
UOM	EA	For Fluid Type	Oil
Division	Parflex Division	Dimensional Weight	0.1151 lb
Product Series	90	Configuration	Hose to Port
Connection 2 Size	7/16"-20 inch Thread	Fitting Length	1.67 inch (see drawing legend A)
Body Material	Steel	Connection 2 Type	Swivel
Connection Length	43 mm	Coating	Chromium 6 Free-plated
Hex Size	9/16 inch (see drawing legend H)	Connection 1 Size	3/16 inch Hose I.D.
Technology	Fluid & Gas Handling	Application	Pneumatics
Product Type	Hose Fittings	Specifications Met	n/a
Shape	Elbow 90° Short Drop	Division	Parflex Division
Brand	Parker	Industry	Industrial
Maximum Operating Pressure	3000 psi (Dependent on hose)	Connection 1 Type	Hose
Tube Outside Diameter	n/a	Hex Size 1	9/16 inch (see drawing legend J)
Hose I.D. (inch)	0.188"	Connection 2 Size	7/16"-20
Length (inch)	1.67"	Product Style	Female JIC 37° - Swivel - 90° Elbow - Short Drop
