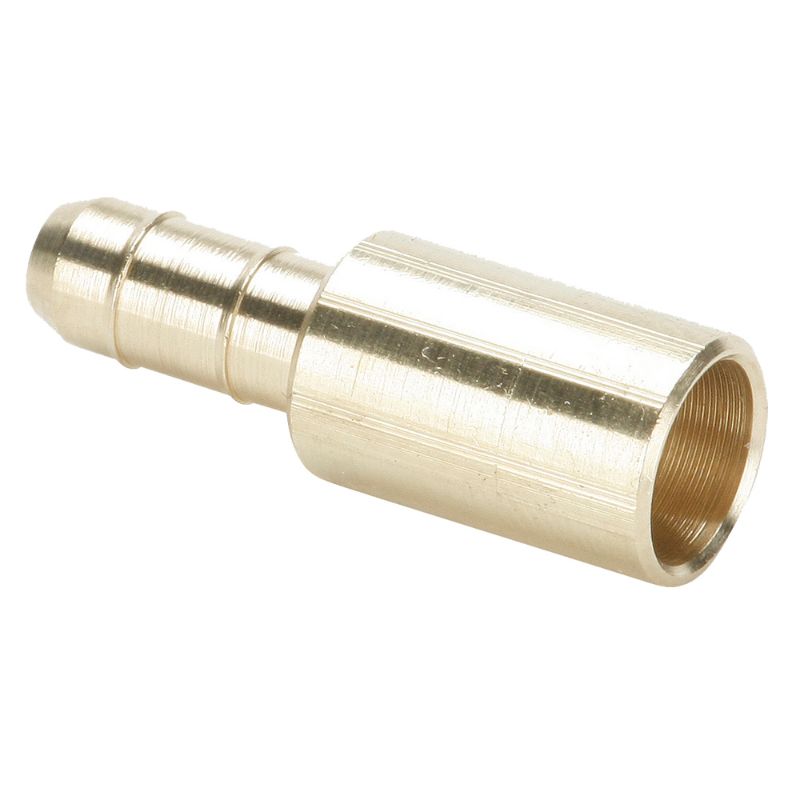

Parker 238-4-4 - Brass Pneumatic Hose Barbs for Tubing, Dubl-Barb

Parker's Dubl-barb push-on hose barb is a compact one piece fitting for a quick, economical way to connect polyethylene tubing.

Availability:	Quote Required
Partner Available:	14 In Stock

Brand Parker

Part No. 238-4-4

$4.44

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Maximum Operating Pressure	10 bar	Minimum Operating Temperature	-65 °F
Tube Material	Polyethylene	Maximum Operating Temperature	90 °F
Body Material	Brass	Connection 3 Style	na
Connection 3 Thread Size (inch)	na	Connection 2 Thread Size (inch)	na
Shape	Connector	Connection 1 Style	Barb
Connection 1 Tube O.D. (inch)	1/4	Connection 2 Tube O.D. (inch)	1/4
Style	Tube to Solder	Connection 2 Style	Solder

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
