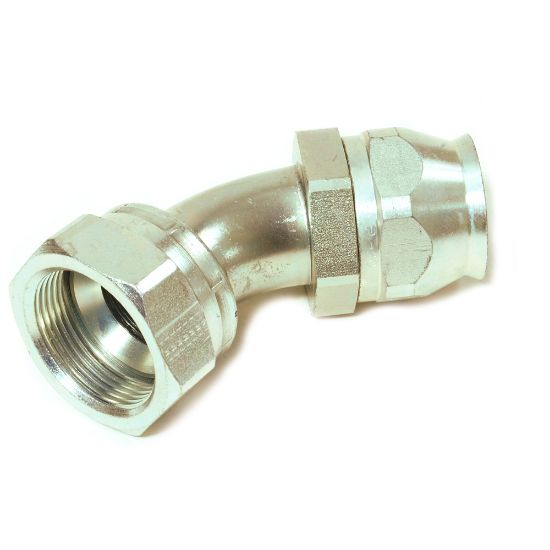

Parker 23790-8-8 - Field Attachable Fittings for PTFE Hose - 90 Series

Parker's 90 Series fittings are used with 919/919B PTFE hoses from Parflex division.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 23790-8-8

$40.95/each

Products specifications

Attribute name	Attribute value
UOM	EA	For Fluid Type	Gases
Fitting Length	2.40 inch (see drawing legend A)	Configuration	Hose to Port
Dimensional Weight	0.0522 lb	Connection 2 Size	3/4"-16 inch Thread
Product Series	90	Industry	Healthcare & Life Sciences
Brand	Parker	Coating	Chromium 6 Free-plated
Connection 1 Size	-8 (Size)	Division	Parflex Division
Technology	Fluid & Gas Handling	Application	Medical
Product Type	Hose Fittings	Shape	Elbow 45° Short Drop
Division	Parflex Division	Connection Length	1-3/4 inch Cut-off allowance (see drawing legend B)
Body Material	Steel	Hex Size	7/8 inch (see drawing legend H)
Connection 2 Type	Swivel	Maximum Operating Pressure	3000 psi (Dependent on hose)
Connection 1 Type	Hose	Tube Outside Diameter	n/a
Specifications Met	n/a	Hex Size 1	7/8 inch (see drawing legend J)
Hose I.D. (inch)	0.406"	Length (inch)	2.4"
Connection 2 Size	3/4"-16	Product Style	Female JIC 37° - Swivel - 45° Elbow - Short Drop
