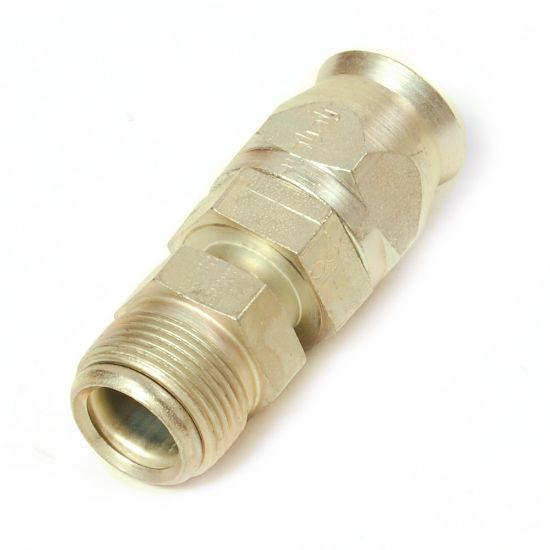

Parker 22890-5-5 - Field Attachable Fittings for PTFE Hose - 90 Series

Parker's 90 Series fittings are used with 919/919B PTFE hoses from Parflex division.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 22890-5-5

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Shape	Straight
Division	Parflex Division	Industry	Transportation
Technology	Fluid & Gas Handling	Connection 2 Type	Male
Application	Semiconductor	Specifications Met	N/A
Product Series	90	Coating	Chromium 6 Free-plated
Division	Parflex Division	Product Type	Hose Fittings
Configuration	Hose to Port	For Fluid Type	Oil
Connection 1 Size	-5 (Size)	Connection 1 Type	Hose
Tube Outside Diameter	n/a	Maximum Operating Pressure	3000 psi (Dependent on hose)
Body Material	Steel	Hex Size	5/8 inch (see drawing legend H)
Connection 2 Size	1/2"-20 inch Thread	Fitting Length	2.21 inch (see drawing legend A)
Hex Size 1	1/2 inch (see drawing legend J)	Connection Length	1-11/16 inch Cut-off allowance (see drawing legend B)
Hose I.D. (inch)	0.25"	Connection 2 Size	1/2"-20
Length (inch)	2.21"	Product Style	Male Inverted SAE 45° - Swivel - Straight
