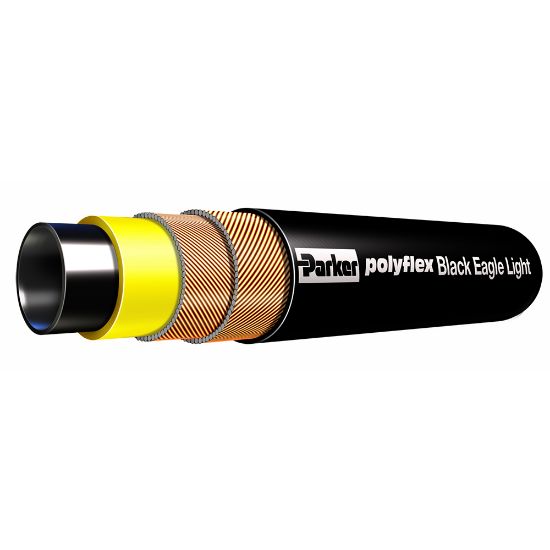

Parker 2248N-32V10 - Black Eagle Light Cementing Hose

The PA11 core tube offers the highest resistance to abrasion and ensures a superior service life for the hose. Handles pressures up to 5,000 psi.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2248N-32V10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °C	Division	Parflex Division
Media	Water	Specifications Met	N/A
Maximum Operating Temperature	100 °C	Design Factor	n/a
Cover Material	Polyurethane	Hose Inner Tube Material	Polyamide (PA)
Maximum Operating Pressure	5000 psi	Weight	4.4 kg/m
Application	Oilfield Cementing	Inside Diameter	50.8 mm
Outside Diameter	68.5 mm	Compatible Fitting	S6 Series
Minimum Bend Radius	19-1/2 inch	Hose Reinforcement Material	2 Closed Spirals of High Tensile Steel Wire
Maximum Working Pressure (psi)	5000

Product resources

Compliance, Certifications & Safety

Parflex Division REACH Compliance (PDF)

Literature and Reference Materials

Catalog 4660 Parflex Thermoplastic & Fluoropolymer Hose and Tubing--CAT-4660 (PDF)
