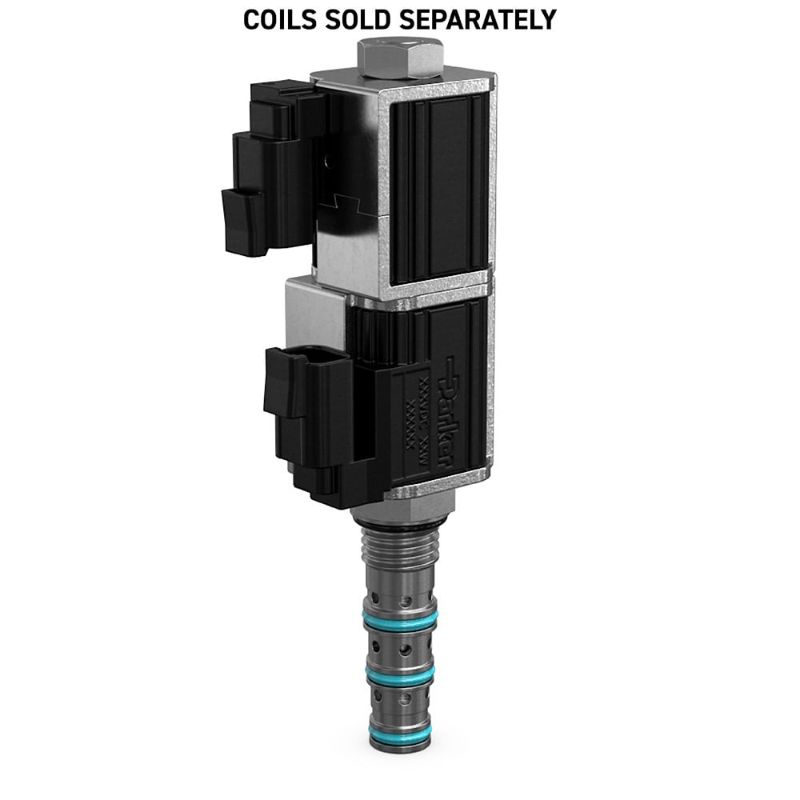

Parker DSP105C4 - Directional Control Proportional Valves

Parker’s family of 3-position, 4-way proportional directional control valves come standard with closed or float center spools and are capable of flows up to 32 lpm (8.5 gpm) and pressures as high as 350 bar (5000 psi).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. DSP105C4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Actuation Type	Electrical	Body Material	n/a
Division	Hydraulic Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-35 °F	Maximum Operating Temperature	+200 °F
Maximum Operating Pressure	210 bar	Override Functionality	n/a
Coil Type	5/8" Super Coil High Watt (CAP)	Operation Type	Solenoid Operated
Power Consumption	28 W	Installation Torque	25 lb-ft
Coil Nut Tightening Torque	3 lb-ft	Cavity Size	C10-4
Weight	0.57 lb	Maximum Inlet Pressure Rating	210 bar
Frequency	100-400 Hz	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	Floating Center	Operating Temperature	-35 to +200 °F
Response Time	50 ms	Maximum Tank Pressure	210 bar
Function	Proportional Directional Control	Flow Rate	32 L/min
Leak Rate	10 @ 3000 PSI (210 BAR) cm3/min	Seal Material	D-Ring (Standard
Maximum Flow Rate	32 L/min	Current	2.33 @ 12 VDC, 1.17 @ 24 VDC A
Hysteresis	Less than 6%	Flow Rate Accuracy	+/- 15% @ 75% Nominal Current and Constant DeltaP Maintained with Pressure Compensator
Variation of Opening Point	25% - 30% of Input Signal	Override Functionality	N/A
Seal Material	D-Ring (Standard)	Maximum Inlet Pressure Rating	3000 PSI, 210 BAR
Configuration	Floating Center	Flow Rate	8.5 GAL/MIN, 32 L/MIN
