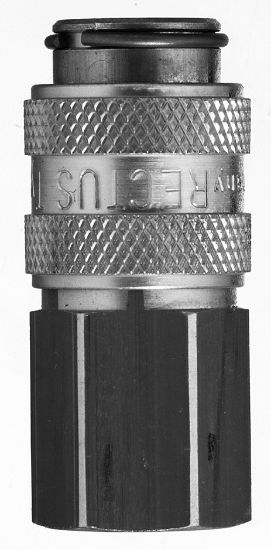

Parker 21KAIN13MPN - Industrial Interchange, High Flow, Quick Connect Air Couplings - Rectus 21, 23, 30 Series

Parker's high flow, Industrial Interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 21KAIN13MPN

$18.38/each

Products specifications

Attribute name	Attribute value
UOM	EA	Sleeve Type	Push to Connect
Maximum Operating Temperature	up to 100 °C	Technology	Fluid & Gas Handling
Connection Type	Female	Division	Quick Coupling Division
Valve Type	Standard Valve	Body Material	Brass
Maximum Flow Rate	1800	Diameter	5.0
Operation Type	Sleeve	Product Style	Quick-Connect
Lock Type	Locking Balls	Region of Origin	Germany
Compatible Fitting	Series 21 Plug	Media	Compressed Air
Specifications Met	n/a	Sleeve Material	Brass
Minimum Operating Temperature	-20 °C	Application	Air, High Flow
Product Type	Quick Couplings Pneumatic	Shape	Straight
Plating Type	Nickel-plated	Division	Low Pressure Connectors Europe Division
Product Series	Series 21	Function	Single Shut-Off
Interchange Type	European Profile	Coupling Half	Coupler
Connection Size	1/4 inch	Seal Material	NBR
Maximum Operating Pressure	up to 507 psi	Brand	Parker
Body Material	BRASS	Connection Thread Size	1/4"-18
Thread Style	Female	Connection Type	NPTF
Hose I.D.	n/a	Body Size	1/8"
Coupling Half	Coupler
