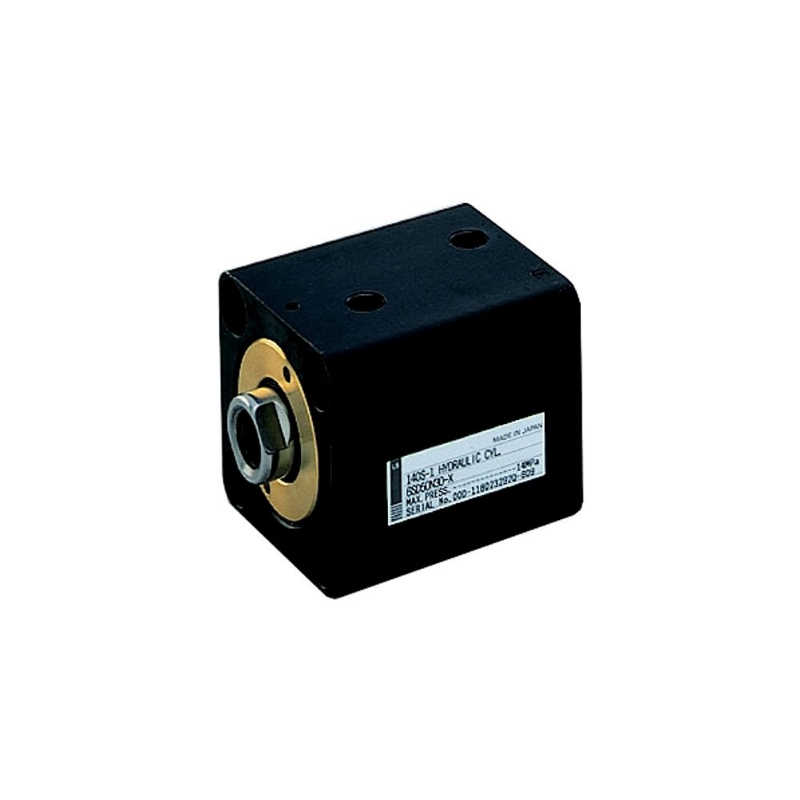

Parker 210S-1R - 21MPa Compact Design Hydraulic Cylinder Model:210S-1

Series 210S-1 Compact Hydraulic Cylinders – best choice when mounting space is at a premium and the application demands a high force cylinder at operating pressures up to 21 MPa.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 210S-1R

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	TAIYO Division	Body Material	Stainless Steel
Fluid Type	Petroleum-based fluid(When using another fluid,give us such instructions.)	Screw Tolerance	JIS 6g/6H
Bore Diameter (mm)	32, 40, 50, 63, 80	Type	Double Acting Single Rod, Switch set
Minimum Operating Pressure (MPa)	0.3	Rod End Thread Type	Female thread and male thread
Cushioning Type	None	Speed Range	8-100mm/s
Seal Material	3:Fluorocarbon 6:HNBR	Mounting Style	SD
Proof Pressure (MPa)	31.5	Temperature Range (C)	AX,AZ switch:-10-+70 (No freezing) AX125,AZ125 switch:-10-+100 (No freezing)
Nominal Pressure (MPa)	21	Stroke Length Tolerance (mm)	0-+0.8
Maximum Working Pressure (MPa)	21
