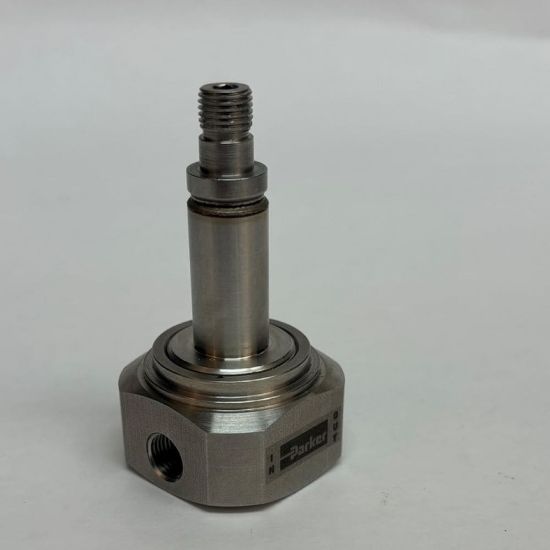

Parker 20CC04EP7 - G7 SERIES Solenoid Valves

The Evolution of Gold Ring™ and Skinner®
Next-Generation 2-Way and 3-Way Solenoid Valves

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 20CC04EP7

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid Control Division	Actuation Type	Direct Acting
Minimum Pressure Differential	0 psi	Body Material	Stainless Steel 303
Configuration	All Ports in Body	Input Voltage	Pressure Vessel Only (AC or DC Voltage)
Orifice Size	3/64 inch	Function	2-Way
Port Size	NPT 1/4 inch	Installation	IOM7220
Seal Material	UR (Urethane)	Power Consumption	10 W
Specifications Met	-	Main Flow Coefficient	0.05 Cv
Maximum Fluid Temperature	140 °F	Preventive Maintenance Kit	7R001
Maximum Ambient Temperature	150 °F	Maximum Pressure Differential	2200 psig
Coil Specifications Met	Requires G7 Series Coil Kit	Exhaust Flow Coefficient	n/a
Configuration	Normally Closed	Voltage	Pressure Vessel Only (AC or DC Voltage)
Function	2-Way	Coil Type	Requires G7 Series Coil Kit
Body Material	303 Stainless Steel	Seal Material	UR (Urethane)
Port Size (inch)	1/4 NPT	Orifice Size (inch)	3/64
Minimum Pressure Differential (psi)	0	Maximum Operating Pressure Differential (psig)	2200
