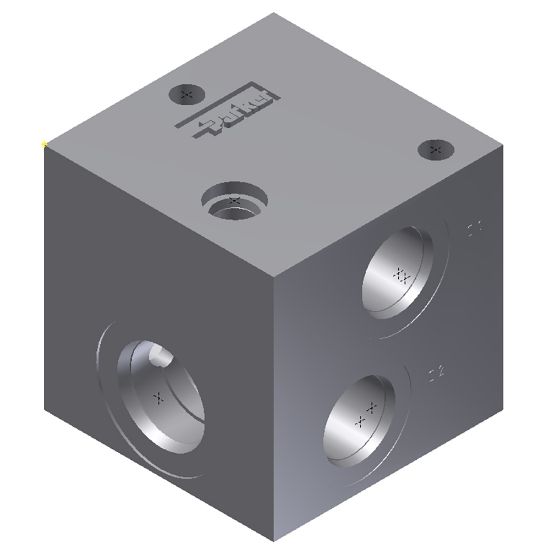

Parker MHC-010-D-53 - Counterbalance Bodies

Parker’s custom bodies to be used specifically with Parker’s MHC-010 and MHC-022 counterbalance cartridge valves.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MHC-010-D-53

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	Steel	Maximum Operating Pressure	5000 psi
Division	Hydraulic Cartridge Systems Division	Division	Hydraulic Systems Division
Flow Rate	Determined by Threaded Cartridge Valve Installed in Line Body	Seal Material	Determined by Threaded Cartridge Valve installed in Line Body
Maximum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body	Minimum Operating Temperature	Determined by Threaded Cartridge Valve Installed in Line Body
Actuation Type	Determined by Threaded Cartridge Valve Installed in Line Body	Maximum Flow Rate	Determined by Threaded Cartridge Valve installed in Line Body
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Number of Positions	3 way
Weight	4.1 lb	Cavity Size	CDD-1010
Port Thread Size	5/8" Work, 3/8" Pilot	Number of Cavities	Dual
Cavity Size	CDD-1010	Port Thread Size	5/8"
