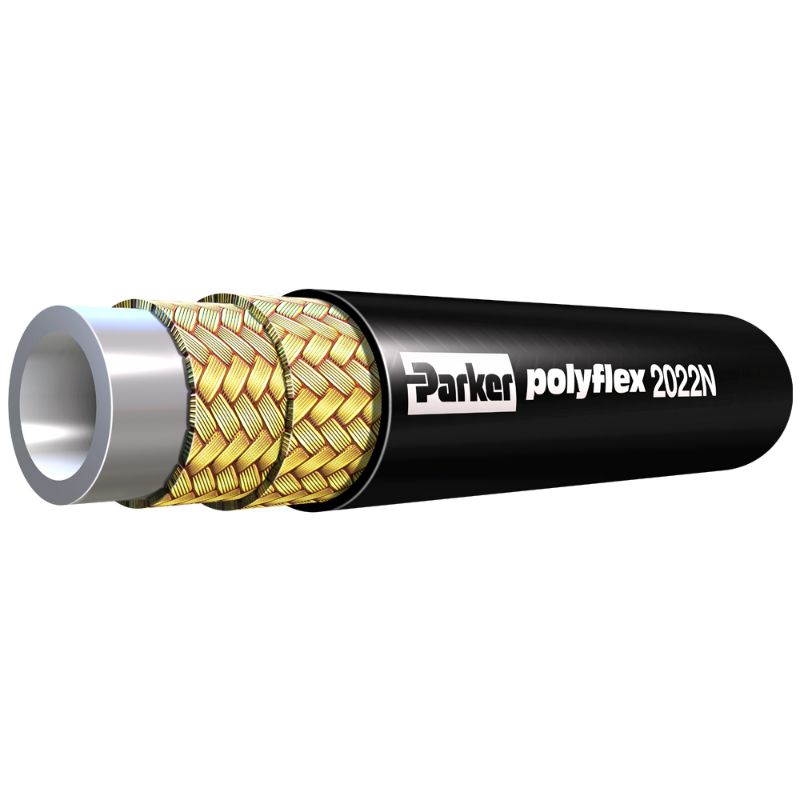

Parker 2022N-04V91-10K - High Pressure Hydraulic Hose - 2022N

Parker 2022N is a 10,000 psi constant pressure hose from Polyflex designed for hydraulic or oil and gas applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2022N-04V91-10K

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °C	Division	Parflex Division
Maximum Operating Pressure	10000 psi	Size	-4
Inside Diameter	1/4 inch	Design Factor	4:1
Media	Water	Minimum Bend Radius	100 mm
Cover Material	Polyurethane	Hose Inner Tube Material	Polyamide (PA)
Weight	0.09 lb/ft	Application	Well Stimulation
Safety Features	Methanol Washed Core Tube.	Outside Diameter	13.8 mm
Compatible Fitting	8X Series Hose guards (HG2022N-4) are required for all hand held applications. Parker Parflex suggests the use of bend restrictors for all assemblies.	Specifications Met	ISO 13628-5, Section 7.9
Hose Reinforcement Material	Braid of Aramid Fiber	Maximum Operating Temperature	55 °C
Hose I.D. (inch)	1/4	Cover Material	Sea water resistant polyurethane
