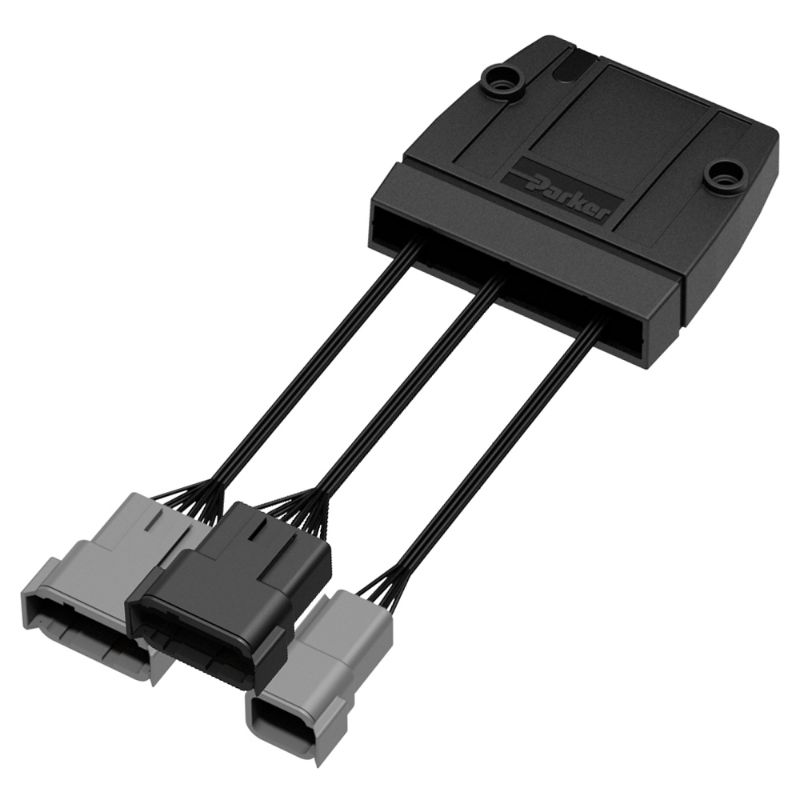

Parker 20077792 - Expansion controllers - IQAN-XC21/XC22/XC23

Parker's IQAN-XC21/XC22/XC23 expansion modules can be added to an IQAN system to increase I/O. They have voltage, digital, PWM and frequency inputs. The outputs are digital. The modules communicate with an IQAN master module over a CAN bus connection.

AFP Availability:	Quote Required
Partner Available:	17 In Stock

Brand Parker

Part No. 20077792

$586.37/each

Products specifications

Attribute name	Attribute value
Number of Outputs	8	Ingress Protection Rating	66
Electrical Connection	Deutsch DTM	Output Current Rating	300 mA
Minimum Operating Temperature	-30 °C	Housing Material	Plastic
Specifications Met	2004/108/EC	Controller Type	Slave/Expansion Module
Industry	Construction	Number of Inputs	20
Power Supply Voltage	9 to 32 VDC	Maximum Operating Temperature	70 °C
Division	Electronic Motion and Controls Division	Model Number	IQAN-XC23
