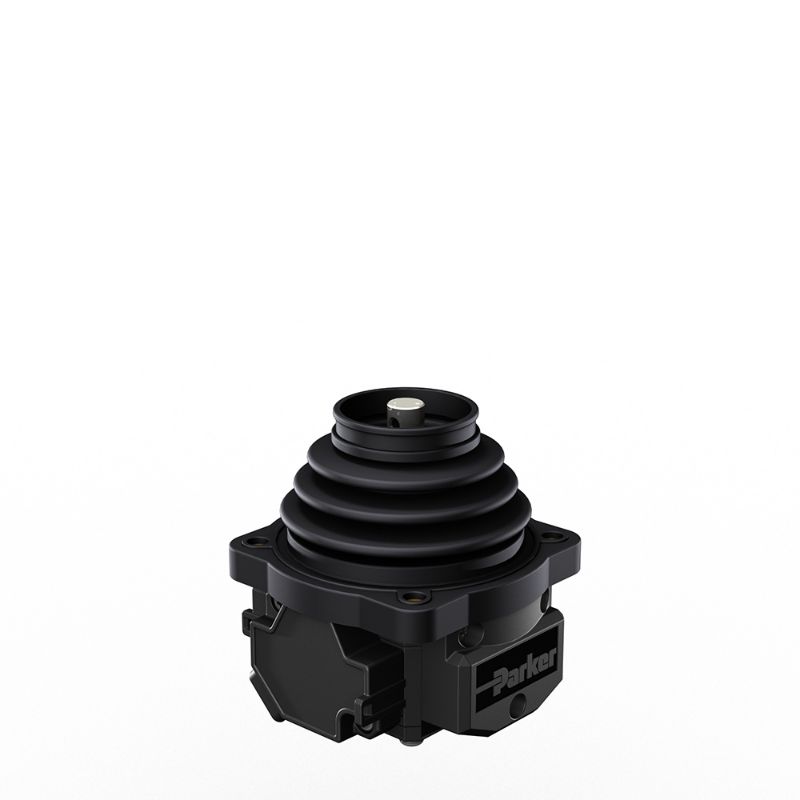

Parker 20077757 - Mini analog, Hall-Effect joystick - IQAN-LC6-X05

Parker's IQAN-LC6-X05 is a small, analog, coordinate joystick. The base has 2 proportional axis and the handle can provide up to 2 additional axis. The IQAN-LC6-X05 is designed to withstand aggressive conditions in mobile equipment.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 20077757

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °C	Division	Electronic Motion and Controls Division
Function	2 Proportional	Maximum Operating Temperature	70 °C
Ingress Protection Rating	IP67 (above flange with sealed handle and bellow)	Electrical Connection	Molex Micro-Fit 3.0 6 Pin
Power Supply Voltage	5 VDC	Handle	No handle
