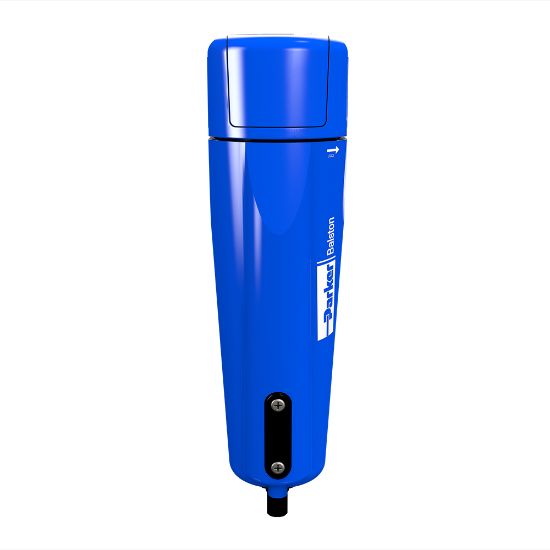

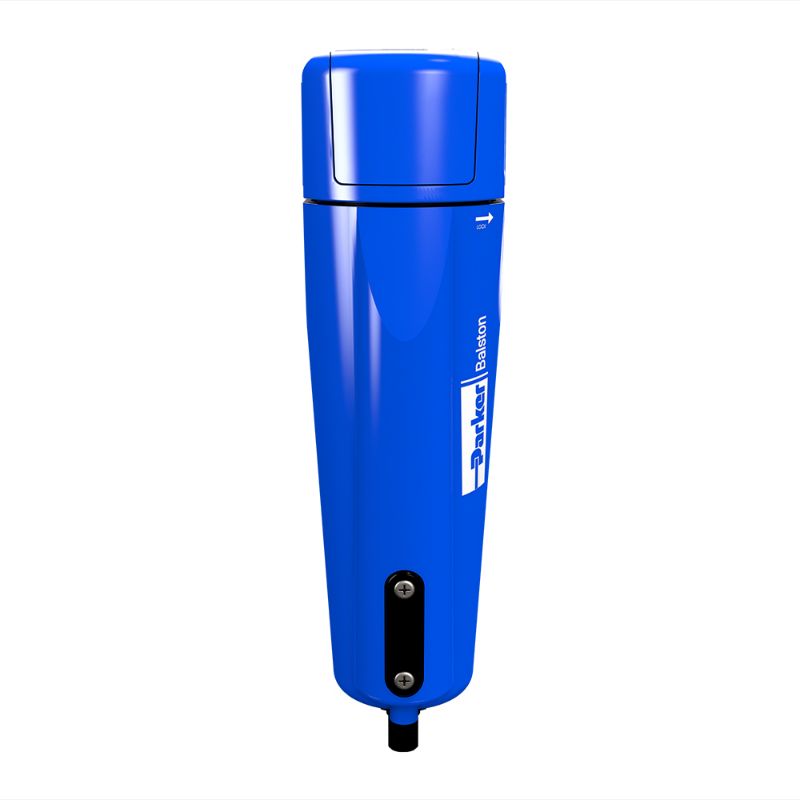

Parker 2002N-0B1-DX - Balston 2000 Series Compressed Air Filters

Parker Balston 2000 series compressed air and gas filters remove contaminants at an efficiency of up to 99.99% for 0.01 micron particles and droplets.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2002N-0B1-DX

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Division	Industrial Gas Filtration and Generation Division
Port Size	1/4 inch	Micron Rating	0.01 MICRON
Weight	2 lb	Drain Port Size	1/8 inch
Width	3.3 inch	Maximum Operating Temperature	54 °C
Minimum Operating Temperature	-150 °F	Height	215.9 mm
Efficiency Rating	93 %	Maximum Flow Rate	107.03 m3/min
Compatible Element	5/100-12-DX	Optional Accessories	Automatic Drain
Materials of Construction	Head: Anod Alum, Bowl: Anod Alum, Internals: Nylon, Seals: Buna-N	Maximum Operating Pressure	17.2 barg
Port Size	0.25"	Connection Type	NPT
Brand	Balston	Product Type	Single Stage Filter
