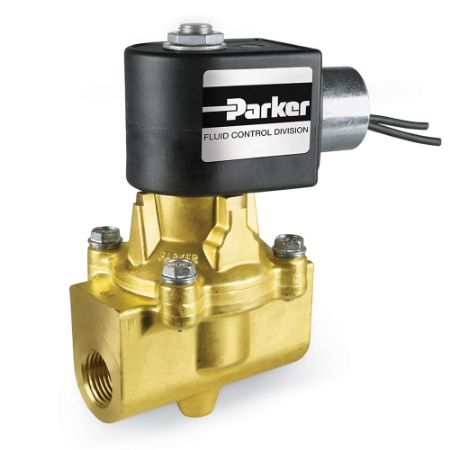

Parker 2-Way Normally Open, 1/2" NPT General Purpose Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 2-Way Normally Open 1/2" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids, gases and steam. These valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation
Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff
Applications:
• Instrumentation Equipment
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Beverage Dispensing & Vending machines
• Oil Burners
• Humidification and Misting Equipment
• Mobile Fuel Shut Off
• Textile and Dry Cleaning Equipment
• Commercial Dishwashers
• Commercial Laundry and Dryers
• Air Horns
• Pneumatic Fan Clutch
• Irrigation Equipment
| Action | Part No. | Availability | Partner Available | Price | Minimum Fluid Temperature | Orifice 2 Size | Function | Product Series | Flow Coefficient 2 | Seal Material | Power Consumption | Division | Coil Type | Valve Type | Body Material | Input Voltage | Media | Coil Specifications Met | Port Size | Minimum Pressure Differential | Number of Ports | Actuation Type | Maximum Fluid Temperature | Maximum Pressure Differential | Port Type | Flow Coefficient 1 | Orifice 1 Size | Body Material | Voltage (V) | Seal Material | Maximum Pressure Differential (psi) | Coil Type | Power (Watts) | Orifice 1 Size (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 72228BN4UV00N0H322C2 | Quote Required | TBD | 0 | n/a | Normally Open (NO) | 7000 Series | n/a | FKM | 22 W (DC) | Fluid Control Division | 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 | 2-Way | Brass | 24.0 | General Purpose for Air | NEMA 9 | 1/2 | 0 | 2 | Direct Lift | 185 | 125 psi (DC) | NPT | 4 | 7/16 | BRASS | 24 VDC | FKM | 125 psi (DC) | 1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9 | 22 Watt (DC) | 7/16 |
