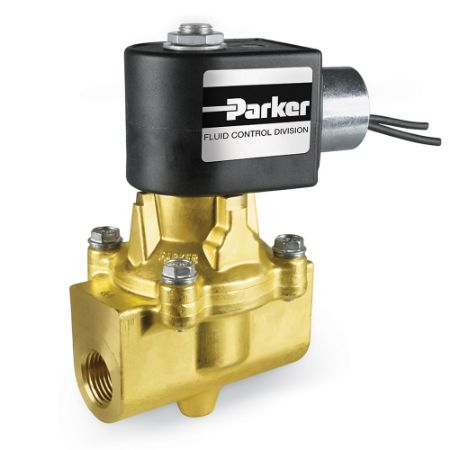

Parker 2-Way Normally Open, 1/2" NPT General Purpose Solenoid Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's 2-Way Normally Open 1/2" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids, gases and steam. These valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.

Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation

Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff

Applications:
• Instrumentation Equipment
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Beverage Dispensing & Vending machines
• Oil Burners
• Humidification and Misting Equipment
• Mobile Fuel Shut Off
• Textile and Dry Cleaning Equipment
• Commercial Dishwashers
• Commercial Laundry and Dryers
• Air Horns
• Pneumatic Fan Clutch
• Irrigation Equipment

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Media	Function	Coil Type	Port Size	Port Type	Body Material	Input Voltage	Seal Material	Actuation Type	Power Consumption	Division	Maximum Fluid Temperature	Maximum Pressure Differential	Minimum Pressure Differential	Valve Type	Orifice 1 Size	Orifice 2 Size	Product Series	Number of Ports	Flow Coefficient 1	Flow Coefficient 2	Coil Specifications Met	Minimum Fluid Temperature	Coil Type	Body Material	Seal Material	Voltage (V)	Power (Watts)	Orifice 1 Size (inch)	Maximum Pressure Differential (psi)
08F23O2140A3FPH75	Quote Required	Quote Required	TBD		General Purpose for Air	Normally Open (NO)	DIN Form A, Class F	1/2	NPT	Brass	12.0	NBR	Hung Diaphragm	11.5 W (DC)	Fluid Control Division	150	125 psi (DC)	0	2-Way	5/8	n/a	Gold Ring Series	2	4	n/a	Class F	0	DIN Form A, Class F	BRASS	NBR	12 VDC	11.5 Watt (DC)	5/8	125 psi (DC)
08F23O2140ACFPH01	Quote Required	Quote Required	TBD		General Purpose for Air	Normally Open (NO)	DIN Form A, Class F	1/2	NPT	Brass	24/60	NBR	Hung Diaphragm	11 W (AC)	Fluid Control Division	150	150 psi (AC)	0	2-Way	5/8	n/a	Gold Ring Series	2	4	n/a	Class F	0	DIN Form A, Class F	BRASS	NBR	24/60	11 Watt (AC)	5/8	150 psi (AC)
08F23O2140ACFPH15	Quote Required	Quote Required	TBD		General Purpose for Air	Normally Open (NO)	DIN Form A, Class F	1/2	NPT	Brass	220/50 to 240/60	NBR	Hung Diaphragm	11 W (AC)	Fluid Control Division	150	150 psi (AC)	0	2-Way	5/8	n/a	Gold Ring Series	2	4	n/a	Class F	0	DIN Form A, Class F	BRASS	NBR	220/50-240/60	11 Watt (AC)	5/8	150 psi (AC)
72228BN4UV00N0C322C1	Quote Required	Quote Required	TBD		Liquids and Gases	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	1/2 inch	NPT	Brass	12.0 VDC	FKM	Direct Lift	22 W (DC)	Fluid Control Division	185 °F	125 psi (DC)	0 psi	2-Way	7/16 inch	n/a	7000 Series	2	4 Cv	n/a	NEMA 4X	0 °F	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	BRASS	FKM	12 VDC	22 Watt (DC)	7/16	125 psi (DC)
72228BN4UV00N0C322C2	Quote Required	Quote Required	TBD		General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	1/2	NPT	Brass	24.0	FKM	Direct Lift	22 W (DC)	Fluid Control Division	185	125 psi (DC)	0	2-Way	7/16	n/a	7000 Series	2	4	n/a	NEMA 4X	0	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	BRASS	FKM	24 VDC	22 Watt (DC)	7/16	125 psi (DC)
72228BN4UV00N0C322P3	Quote Required	Quote Required	TBD		General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	1/2	NPT	Brass	110/50-120/60	FKM	Direct Lift	22 W (AC)	Fluid Control Division	185	125 psi (AC)	0	2-Way	7/16	n/a	7000 Series	2	4	n/a	NEMA 4X	0	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	BRASS	FKM	110/50-120/60	22 Watt (AC)	7/16	125 psi (AC)
72228BN4UV00N0D300C1	Quote Required	Quote Required	TBD		General Purpose for Air	Normally Open (NO)	DIN Form A, Class H	1/2	NPT	Brass	12.0	FKM	Direct Lift	22 W (DC)	Fluid Control Division	185	125 psi (DC)	0	2-Way	7/16	n/a	7000 Series	2	4	n/a	Class H	0	DIN Form A, Class H	BRASS	FKM	12 VDC	22 Watt (DC)	7/16	125 psi (DC)
72228BN4UV00N0D300C2	Quote Required	Quote Required	TBD		Liquids and Gases	Normally Open (NO)	DIN Form A, Class H	1/2 inch	NPT	Brass	24.0 VDC	FKM	Direct Lift	22 W (DC)	Fluid Control Division	185 °F	125 psi (DC)	0 psi	2-Way	7/16 inch	n/a	7000 Series	2	4 Cv	n/a	Class H	0 °F	DIN Form A, Class H	BRASS	FKM	24 VDC	22 Watt (DC)	7/16	125 psi (DC)
72228BN4UV00N0H322C1	Quote Required	Quote Required	TBD		General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9	1/2	NPT	Brass	12.0	FKM	Direct Lift	22 W (DC)	Fluid Control Division	185	125 psi (DC)	0	2-Way	7/16	n/a	7000 Series	2	4	n/a	NEMA 9	0	1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9	BRASS	FKM	12 VDC	22 Watt (DC)	7/16	125 psi (DC)
72228BN4UV00N0H322C2	Quote Required	Quote Required	$0.01	EA	General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9	1/2	NPT	Brass	24.0	FKM	Direct Lift	22 W (DC)	Fluid Control Division	185	125 psi (DC)	0	2-Way	7/16	n/a	7000 Series	2	4	n/a	NEMA 9	0	1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9	BRASS	FKM	24 VDC	22 Watt (DC)	7/16	125 psi (DC)
72228BN4UV00N0H322P3	Quote Required	Quote Required	TBD		General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9	1/2	NPT	Brass	110/50-120/60	FKM	Direct Lift	22 W (AC)	Fluid Control Division	185	125 psi (AC)	0	2-Way	7/16	n/a	7000 Series	2	4	n/a	NEMA 9	0	1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9	BRASS	FKM	110/50-120/60	22 Watt (AC)	7/16	125 psi (AC)
72228BN4UV00N0H322Q3	Quote Required	Quote Required	TBD		General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9	1/2	NPT	Brass	220/50 to 240/60	FKM	Direct Lift	22 W (AC)	Fluid Control Division	185	125 psi (AC)	0	2-Way	7/16	n/a	7000 Series	2	4	n/a	NEMA 9	0	1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9	BRASS	FKM	220/50-240/60	22 Watt (AC)	7/16	125 psi (AC)
72228RN4UV00N0C322C1	Quote Required	Quote Required	TBD		General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	1/2	NPT	Stainless Steel 316	12.0	FKM	Direct Lift	22 W (DC)	Fluid Control Division	185	125 psi (DC)	0	2-Way	7/16	n/a	7000 Series	2	4	n/a	NEMA 4X	0	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	316 Stainless	FKM	12 VDC	22 Watt (DC)	7/16	125 psi (DC)
72228RN4UV00N0C322C2	Quote Required	Quote Required	TBD		General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	1/2	NPT	Stainless Steel 316	24.0	FKM	Direct Lift	22 W (DC)	Fluid Control Division	185	125 psi (DC)	0	2-Way	7/16	n/a	7000 Series	2	4	n/a	NEMA 4X	0	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	316 Stainless	FKM	24 VDC	22 Watt (DC)	7/16	125 psi (DC)
72228RN4UV00N0C322P3	Quote Required	Quote Required	TBD		General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	1/2	NPT	Stainless Steel 316	110/50-120/60	FKM	Direct Lift	22 W (AC)	Fluid Control Division	185	125 psi (AC)	0	2-Way	7/16	n/a	7000 Series	2	4	n/a	NEMA 4X	0	1/2" NPT Conduit, 18" Leads, Class H, NEMA 4X	316 Stainless	FKM	110/50-120/60	22 Watt (AC)	7/16	125 psi (AC)
72228RN4UV00N0D300C1	Quote Required	Quote Required	TBD		General Purpose for Air	Normally Open (NO)	DIN Form A, Class H	1/2	NPT	Stainless Steel 316	12.0	FKM	Direct Lift	22 W (DC)	Fluid Control Division	185	125 psi (DC)	0	2-Way	7/16	n/a	7000 Series	2	4	n/a	Class H	0	DIN Form A, Class H	316 Stainless	FKM	12 VDC	22 Watt (DC)	7/16	125 psi (DC)
72228RN4UV00N0D300C2	Quote Required	Quote Required	TBD		General Purpose for Air	Normally Open (NO)	DIN Form A, Class H	1/2	NPT	Stainless Steel 316	24.0	FKM	Direct Lift	22 W (DC)	Fluid Control Division	185	125 psi (DC)	0	2-Way	7/16	n/a	7000 Series	2	4	n/a	Class H	0	DIN Form A, Class H	316 Stainless	FKM	24 VDC	22 Watt (DC)	7/16	125 psi (DC)
72228RN4UV00N0H322C1	Quote Required	Quote Required	TBD		General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9	1/2	NPT	Stainless Steel 316	12.0	FKM	Direct Lift	22 W (DC)	Fluid Control Division	185	125 psi (DC)	0	2-Way	7/16	n/a	7000 Series	2	4	n/a	NEMA 9	0	1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9	316 Stainless	FKM	12 VDC	22 Watt (DC)	7/16	125 psi (DC)
72228RN4UV00N0H322C2	Quote Required	Quote Required	TBD		Liquids and Gases	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9	1/2 inch	NPT	Stainless Steel 316	24.0 VDC	FKM	Direct Lift	22 W (DC)	Fluid Control Division	185 °F	125 psi (DC)	0 psi	2-Way	7/16 inch	n/a	7000 Series	2	4 Cv	n/a	NEMA 7	0 °F	1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9	316 Stainless	FKM	24 VDC	22 Watt (DC)	7/16	125 psi (DC)
72228RN4UV00N0H322P3	Quote Required	Quote Required	TBD		General Purpose for Air	Normally Open (NO)	1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9	1/2	NPT	Stainless Steel 316	110/50-120/60	FKM	Direct Lift	22 W (AC)	Fluid Control Division	185	125 psi (AC)	0	2-Way	7/16	n/a	7000 Series	2	4	n/a	NEMA 9	0	1/2" NPT Conduit, 18" Leads, Class H, NEMA 7, 9	316 Stainless	FKM	110/50-120/60	22 Watt (AC)	7/16	125 psi (AC)
