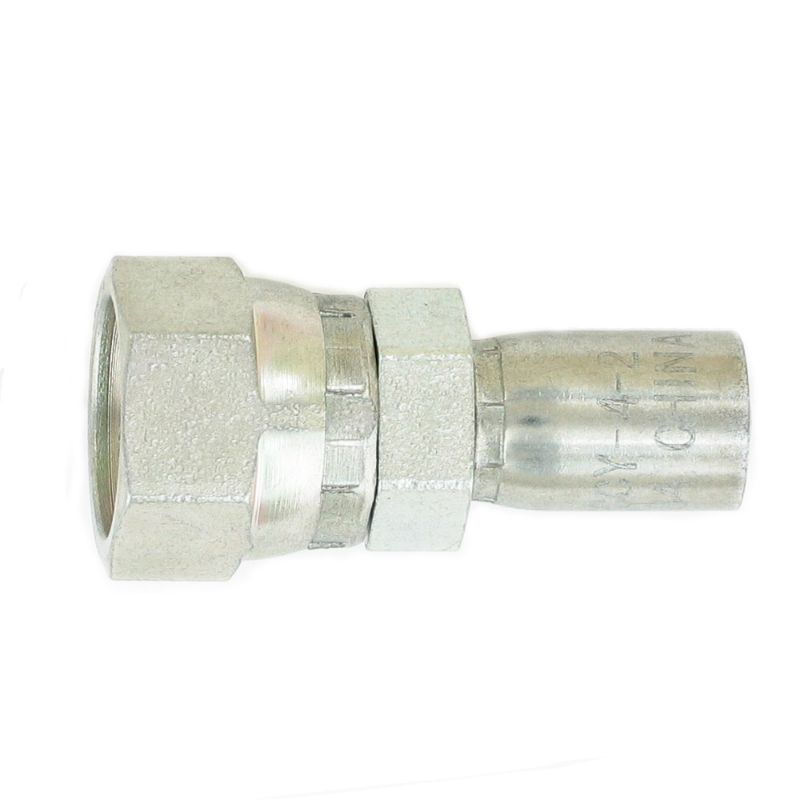

Parker 1JCCY-4-2 - Permanent Fittings for Parflex Hose – CY Series

Name: Parker 1JCCY-4-2 - Permanent Fittings for Parflex Hose – CY Series
SKU: 1JCCY-4-2
Price: 31.96 USD
Availability: InStock

Parker CY Series Fittings are a durable, steel, crimp style permanent fittings that are suitable for use with the Parflex HLB Lubrication Line Hose and the 56DH/568DH Diagnostic Hose.

AFP Availability:

1 Limited Stock

North Chesterfield, VA

Partner Available:

75 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 1JCCY-4-2

$31.96/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Parflex Division
Body Material	Steel	Product Type	Hose Fittings
Application	Fluid Control	Shape	Straight Short
Connection 1 Type	Hose	Specifications Met	n/a
Hex Size 1	0.6875 inch (see drawing legend J)	Brand	Parker
Maximum Operating Pressure	6000 psi	Industry	Industrial Manufacturing Equipment
For Fluid Type	Water	Division	Parflex Division
Connection 2 Size	9/16"-18 inch	Fitting Length	1.29 inch
Configuration	Hose to Port	Technology	Fluid & Gas Handling
Connection 2 Type	Seal-Lok® Swivel	Coating	Chromium 6 Free-plated
Connection Length	3/4 inch Cut-off allowance	Connection 1 Size	1/8 inch
Hex Size	0.5625 inch (see drawing legend H)	Shape	Straight
Body Material	Steel	Product Style	Female Seal-Lok - Swivel - Straight - Short
Hose I.D. (inch)	0.125"	Connection 2 Size	9/16"-18 UNF
Length (inch)	1.29"
