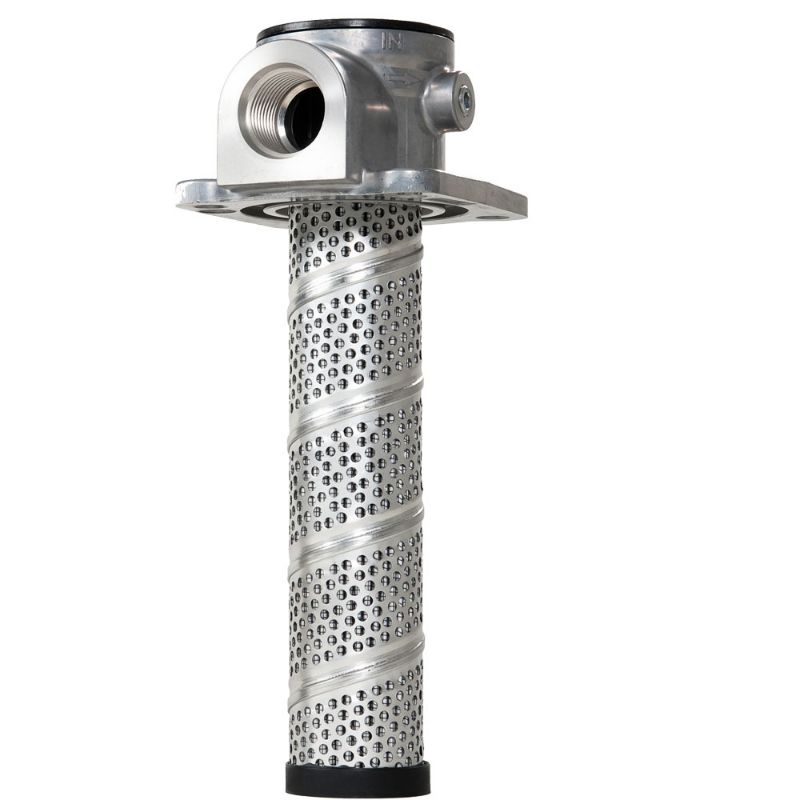

Parker PT2210QBPGS121 - Low Pressure Tank Top Filters PT Series

Parker’s PT Series Return Line Filters combine high efficiency Microglass filtration with low cost installation in a patented design. Allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/180 LPM depending on viscosity.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. PT2210QBPGS121

$148.29/each

Products specifications

Attribute name	Attribute value
UOM	EA	Options	Tank Mounted
Indicator Type	Plugged ports	Bypass Valve Pressure Rating	1.7 bar
Housing Material	Aluminum	Flow Rate	25.0 Gal/min
Seal Material	Nitrile	Compatible Element	936756
Weight	0.49 kg	Mounting Style	Tank Mounted
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Pressure Rating	15 psi
Filter Element Type	10Q Microglass	For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids
Indicator Pressure Setting	No Indicator	Maximum Operating Temperature	107.0 °C
Filter Element Type	10Q Microglass	Indicator Type	Plugged Ports
Port Connection Type	SAE-12	Seal Material	Nitrile
Flow Rate	25 gpm (94.6 lpm)	Options	None
Bypass Valve Pressure Rating	25 psid (1.7 bar)
