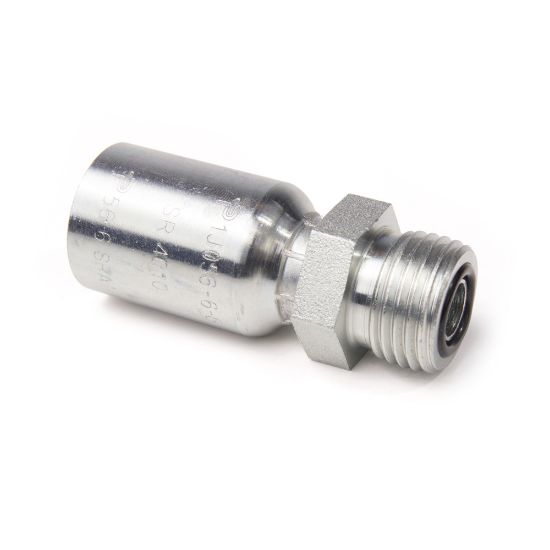

Parker 1J056-8-6 - Global Fittings - 56 Series - Inch

Name: Parker 1J056-8-6 - Global Fittings - 56 Series - Inch
SKU: 1J056-8-6
Price: 167.45 USD
Availability: InStock

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

AFP Availability:

31 In Stock

North Chesterfield, VA	14
Ashland, VA	4 (Pickup only)
Norfolk, VA	4
West Knoxville, TN	3
East Knoxville, TN	3
Johnson City, TN	2 (Pickup only)
Sumter, SC	1

Partner Available:

143 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 1J056-8-6

$167.45/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Industry	Industrial Manufacturing Equipment	Dimensional Weight	0.0244 lb
For Fluid Type	Water	Connection 2 Size	13/16"-16 inch Thread
Fitting Length	2.16 inch (see drawing legend A)	Configuration	Hose to Port
Technology	Fluid & Gas Handling	Division	Parflex Division
Coating	Chromium 6 Free-plated	Connection 1 Size	3/8 inch Hose I.D.
Connection 2 Type	Male	Connection Length	30 mm Cut-off allowance
Body Material	Steel with Nitrile O-Ring	Hex Size	7/8 inch (see drawing legend H)
Shipping Weight	0.038 kg	Division	Parflex Division
Shape	Straight	Hex Size 2	n/a
Application	Industrial Hydraulics	Connection 1 Type	Hose
Hex Size 1	n/a	Tube Outside Diameter	n/a
Maximum Operating Pressure	34.5 MPa (Dependent on hose)	Materials of Construction	Steel
Hose I.D. (inch)	0.375"	Length (inch)	2.16"
Product Style	Male Seal-Lok® - Rigid Straight (with O-Ring)	Connection 2 Size	13/16"-16
