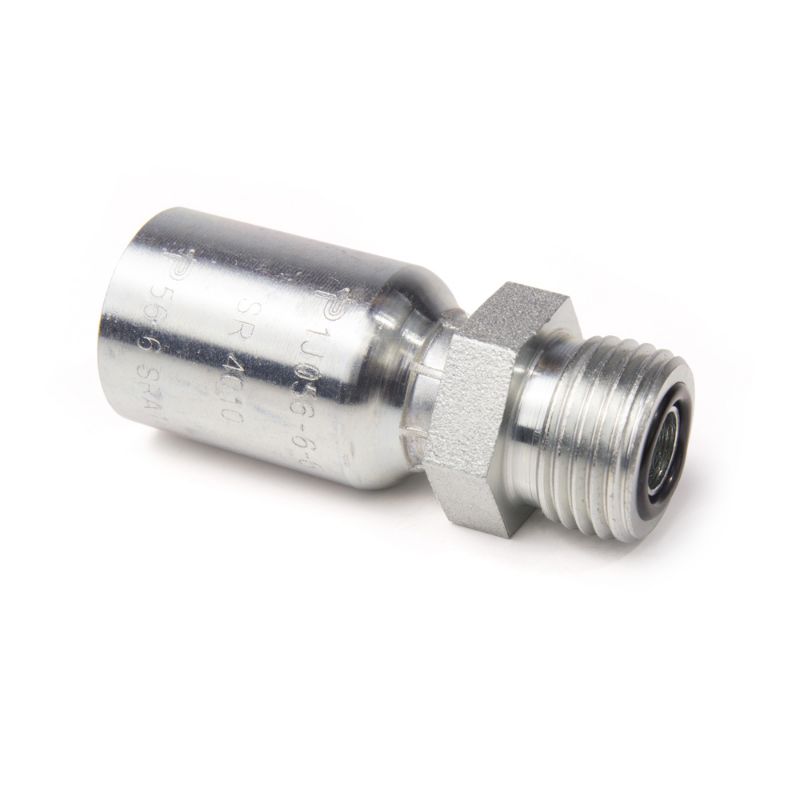

Parker 1J056-6-6 - Global Fittings - 56 Series - Inch

Name: Parker 1J056-6-6 - Global Fittings - 56 Series - Inch
SKU: 1J056-6-6
Price: 26.52 USD
Availability: InStock

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

AFP Availability:

203 In Stock

North Chesterfield, VA	44
Norfolk, VA	36
Fayetteville, NC	28
Ashland, VA	25 (Pickup only)
Richmond, VA	15 (Pickup only)
Sumter, SC	14
Summerville, SC	14
Johnson City, TN	10 (Pickup only)
East Knoxville, TN	7
West Knoxville, TN	5
Mooresville, NC	5

Partner Available:

898 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 1J056-6-6

$26.52/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Shipping Weight	0.06 lb
Shape	Straight	Division	Parflex Division
Application	Agriculture Equipment	Hex Size 2	n/a
Hex Size 1	n/a	Connection 1 Type	Hose
Tube Outside Diameter	n/a	Industry	Industrial Manufacturing Equipment
Maximum Operating Pressure	5000 psi (Dependent on hose)	Brand	Parker
Configuration	Hose to Port	Fitting Length	50 mm (see drawing legend A)
Dimensional Weight	0.0195 lb	Connection 2 Size	11/16"-16 inch Thread
For Fluid Type	Oil	Division	Parflex Division
Technology	Fluid & Gas Handling	Connection Length	1 inch Cut-off allowance
Body Material	Steel with Nitrile O-Ring	Coating	Chromium 6 Free-plated
Connection 2 Type	Rigid (with O-Ring)	Hex Size	3/4 inch (see drawing legend H)
Connection 1 Size	9.5 mm Hose I.D.	Materials of Construction	Steel
Hose I.D. (inch)	0.375"	Length (inch)	1.98"
Product Style	Male Seal-Lok® - Rigid Straight (with O-Ring)	Connection 2 Size	11/16"-16
