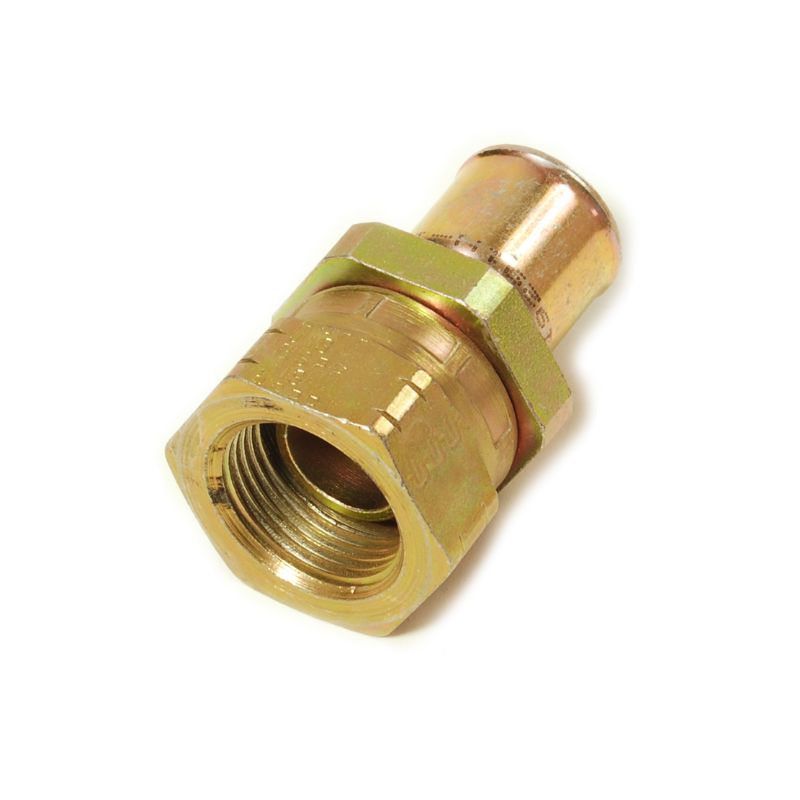

Parker 19291N-12-12 - Permanent Fittings for PTFE Hose - 91/91N

Parker's 91/91N Series fittings are used with 919/919B, 919J, 919U, 929/929B, and 929BJ PTFE hoses from the Parflex division.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 19291N-12-12

$261.77

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Shape	Straight	Division	Parflex Division
Technology	Fluid & Gas Handling	Specifications Met	N/A
Coating	Chromium 6 Free-plated	Division	Parflex Division
Application	Ultra High Purity	Product Type	Hose Fittings
Configuration	Hose to Port	Connection 1 Type	Hose
Tube Outside Diameter	n/a	Maximum Operating Pressure	3000 psi (Dependent on hose)
Body Material	Steel	Connection 1 Size	5/8 inch Hose I.D.
Product Series	91N	Industry	Semiconductor
For Fluid Type	Chemicals	Connection 2 Type	Swivel
Connection Length	40 mm	Dimensional Weight	0.0374 lb
Hex Size	36 mm (see drawing legend J)	Hex Size 1	36 mm (see drawing legend H)
Fitting Length	2.35 inch (see drawing legend A)	Connection 2 Size	PF-3/4"-14 inch Thread
Hose I.D. (inch)	0.625"	Product Style	Female BSP Parallel Pipe - Swivel Straight (60° Cone)
Length (inch)	2.35"	Connection 2 Size	PF-3/4"-14
