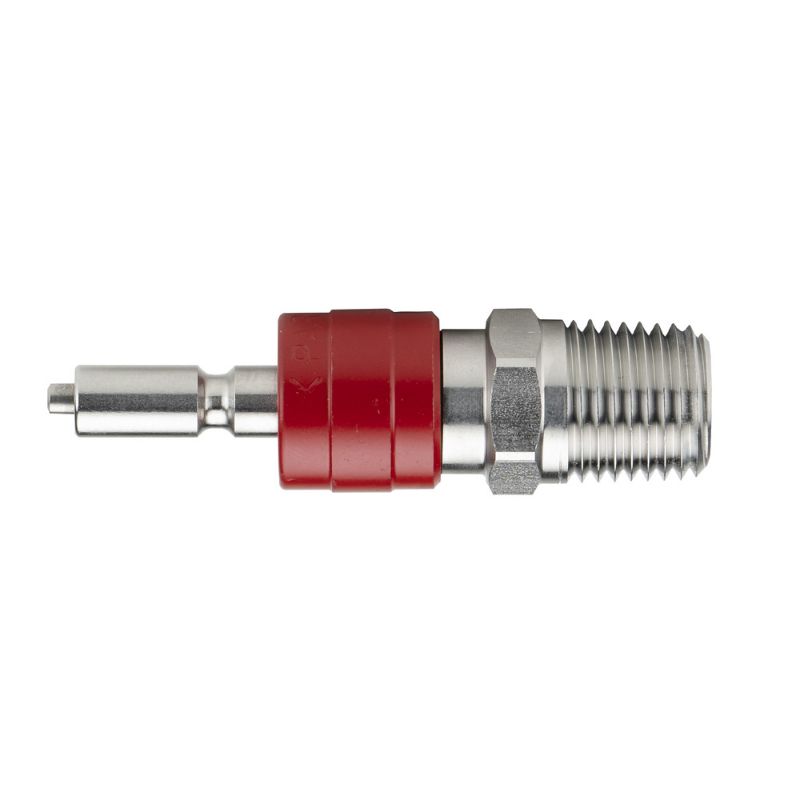

Parker 2M-Q4VY-SS - Stainless Steel, Instrumentation Quick Couplings - CPI Series

Parker's stainless steel instrumentation quick couplers and nipples are ideal for vacuum or pressure applications where fluid or gas lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 2M-Q4VY-SS

$125.62/each

Products specifications

Attribute name	Attribute value
UOM	EA	Hose Inside Diameter	na
Product Type	Push-to-Connect	Application	Instrumentation
Minimum Operating Temperature	-15 °F	Maximum Operating Pressure	3000 psi
Seal Material	Fluorocarbon	Division	Quick Coupling Division
Maximum Operating Temperature	400 °F	Vacuum Pressure Rating	0.05 mm-Hg
Valve Type	Poppet	Body Material	316 Stainless steel
Coupling Half	Male Nipple	Body Size (inch)	1/4
Connection Thread Size (inch)	1/8 - 27	Maximum Operating Pressure	3000
Connection Type	Male NPT	Tube Size (inch)	na
