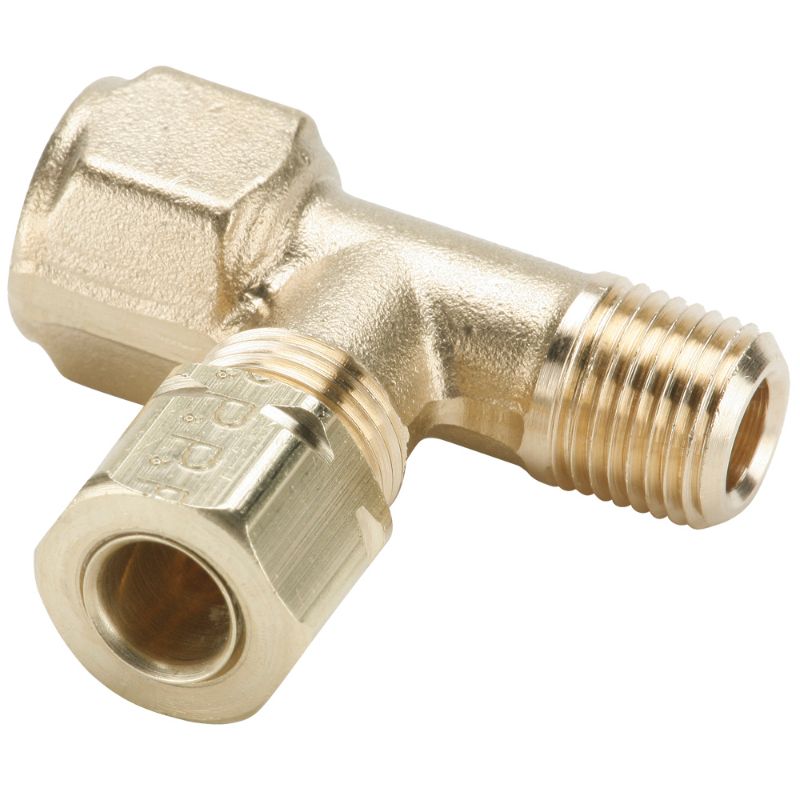

Parker 176CA-4-2 - Brass Compression Fittings, Compress-Align

Parker's Compress-Align fittings require no flaring, soldering or other preparation of tubing. The captive sleeve is always oriented for correct installation, visible for inspection before and after installation.

Availability:	Quote Required
Partner Available:	87 In Stock

Brand Parker

Part No. 176CA-4-2

$11.96

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Maximum Operating Temperature	250 °F	For Fluid Type	Air
Connection Type	NPTF	Minimum Operating Temperature	-65 °F
Maximum Operating Pressure	2800 psi	Materials of Construction	Brass (Sleeve)
Application	Compressors	Tube Material	Copper
Body Material	Brass	Shape	Tee
Connection 2 Type	Male Pipe	Connection 2 Thread Size	1/8"
Body Material	Brass, Forged	Connection 1 Type	Compression
Connection 1 Tube Outside Diameter	1/4" (O.D.)	Configuration	Tube to Pipe
Connection 3 Type	Female Pipe
