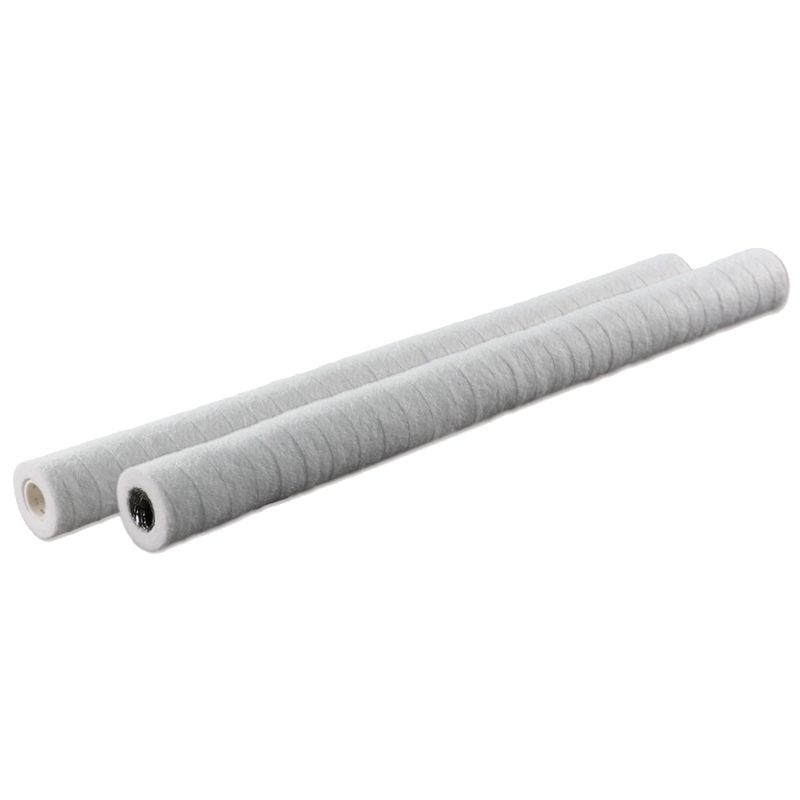

Parker 176637 - PEACH-PURE™ PCLAS Liquid Filter Cartridge

PEACH-Pure™ Series PCLAS depth style classifier filter cartridge for targeted contaminant removal used in a variety of liquid filtration applications including viscous fluids. PCLAS is a replacement for the discontinued Parker Probond cartridge line.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 176637

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Industrial Process Filtration Division	Brand	Parker
Product Type	Filter Cartridge	Division	Industrial Process Filtration Division
Technology	Filtration	Application	Liquid Particulate Filtration
Flow Direction	Outside-to-inside	Industry	Oil and Gas
Quantity per Box	20	pH Range	3-9
Body Material	n/a	Nominal Inside Diameter	1 inch
Nominal Outside Diameter	2.5 inch	Product Series	PCLAS
Filter Material	Polyester	Filter Construction	PEACH Depth Classifier
Series or Model Replaced	PRO5-30XA	Micron Rating	5
Cartridge Length	30"	End Cap Material	N/A
Nominal Outside Diameter	2.5"	Maximum Operating Temperature	180 F
Seal Material	Integral PEACH end serves as seal	Nominal Inside Diameter	1"
End Cap Configuration	DOE - w/ Polypropylene Extender	Core Material	304SS
Filter Construction	PEACH Depth	Model Number	ELMT PCLAS-230-X-05-SS
Filler Material	Polyester	Maximum Pressure Differential	85 PSID
Changeout Pressure Differential	50 PSID

Product resources

Literature and Reference Materials

PARKER--SERIES PCLAS, PEACH-PURE CARTRIDGE DATASHEET (PDF)
