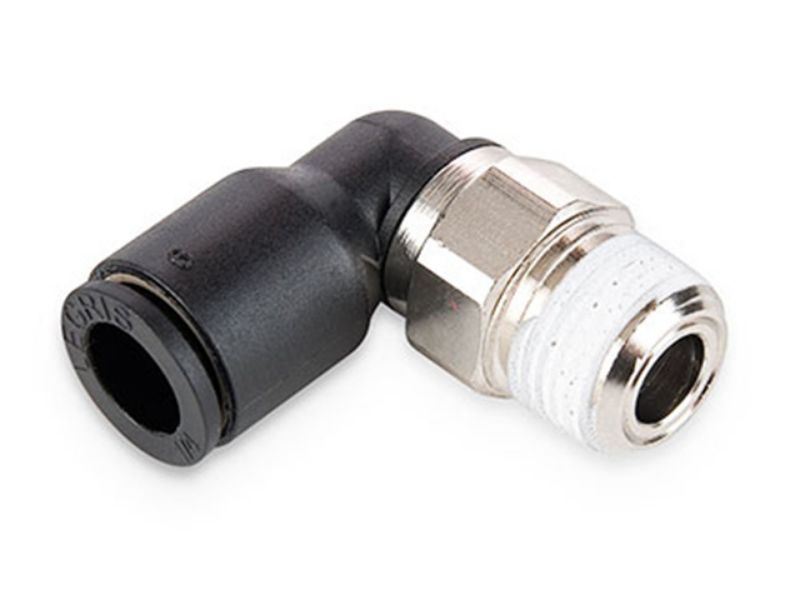

Parker 3109 10 10 - Legris Composite 3109 - Metric-BSPT

Male Elbow Swivel 90° Push-to-Connect Instant Pneumatic Fitting

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3109 10 10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Pkg Qty/UOM	10 EA
Pkg Qty	10	Outer Diameter 1	10 mm
Thread 1	1/8 BSPT	Material	Composite, Nickel-Plated Brass
Parker Group	Fluid Connector	Parker Division	Fluid Systems Connector (Brass Products)
Configuration Type	Tube to Male	Configuration Sub-Type	Male Elbow Swivel 90°
Outer Diameter 1	10 mm	Outer Diameter 1 Inch/mm	mm
Series	Legris LF3000	Thread 1	1/8 BSPT
Thread 1 Type	BSPT	Material	Composite, Nickel-Plated Brass
Trade Name	Legris	Inch/Metric	Metric-BSPT

Product resources

Legris Push-in Fittings (PDF)
