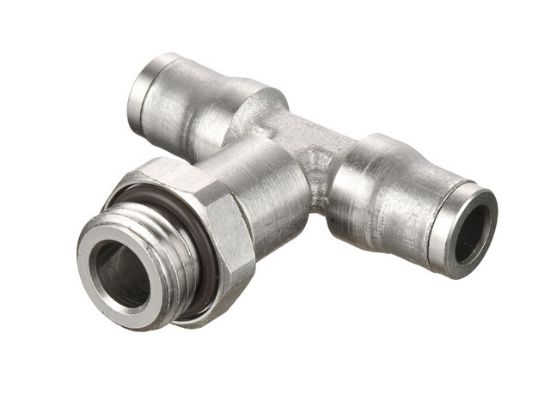

Parker 172PLS-6M-4G - Prestolok PLS Series 172PLS - Metric-BSPP/Metric

Metric-BSPP/Metric Male Branch Tee Swivel - Push-to-Connect Fitting

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 172PLS-6M-4G

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Outer Diameter 1	6 mm	UOM	EA
Thread 1	1/4 BSPP	Inch/Metric	Metric-BSPP/Metric
Series	Prestolok PLS	Operating Temperature	-4˚ to +302˚F
Thread 1 Type	BSPP	Material - Seal	FKM Fluoroelastomer
Trade Name	Prestolok	Configuration Type	Tube to Male
Material	Stainless Steel	Pressure Range	7 to 290 psi
Configuration Sub-Type	Male Branch Tee Swivel	Thread 1	1/4 BSPP
Parker Division	Fluid Systems Connector (Brass Products)	Outer Diameter 1	6 mm
Parker Group	Fluid Connector	Outer Diameter 1 Inch/mm	mm
