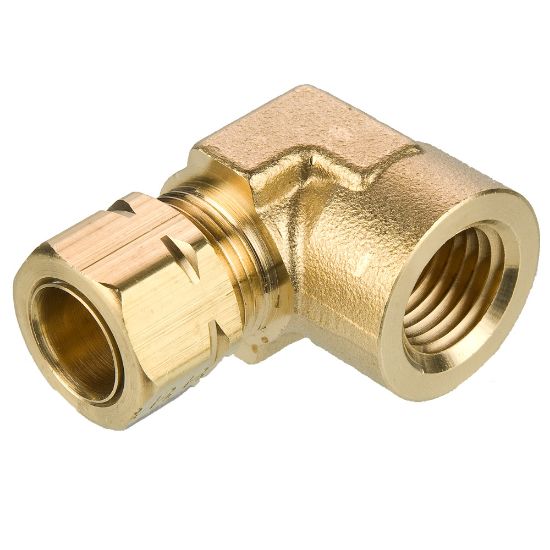

Parker 170CA-6-4 - Brass Compression Fittings, Compress-Align

Name: Parker 170CA-6-4 - Brass Compression Fittings, Compress-Align
SKU: 170CA-6-4
Price: 12.22 USD
Availability: InStock

Parker's Compress-Align fittings require no flaring, soldering or other preparation of tubing. The captive sleeve is always oriented for correct installation, visible for inspection before and after installation.

AFP Availability:

56 In Stock

North Chesterfield, VA	32
West Knoxville, TN	7
East Knoxville, TN	6
Richmond, VA	5 (Pickup only)
Norfolk, VA	3
Ashland, VA	2 (Pickup only)
Johnson City, TN	1 (Pickup only)

Partner Available:

1227 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 170CA-6-4

$12.22/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	For Fluid Type	Non-combustible Gases
Division	Fluid System Connectors Division	Connection Type	NPTF
Dimensional Weight	0.2759 lb	Maximum Operating Temperature	250 °F
Body Material	Brass	Minimum Operating Temperature	-65 °F
Application	Compressors	Tube Material	Copper
Maximum Operating Pressure	2800 psi	Materials of Construction	Brass (Sleeve)
Shape	Elbow 90°	Connection 2 Type	Female Pipe
Connection 2 Thread Size	1/4"	Body Material	Brass, Forged
Connection 1 Type	Compression	Connection 1 Tube Outside Diameter	3/8" (O.D.)
Configuration	Tube to Female Pipe
